ALPHA 160/400 DIN spare part door
Part Number: 8GK9510-7KK31
Brand
Category
Door/operating panel (enclosure/cabinet)

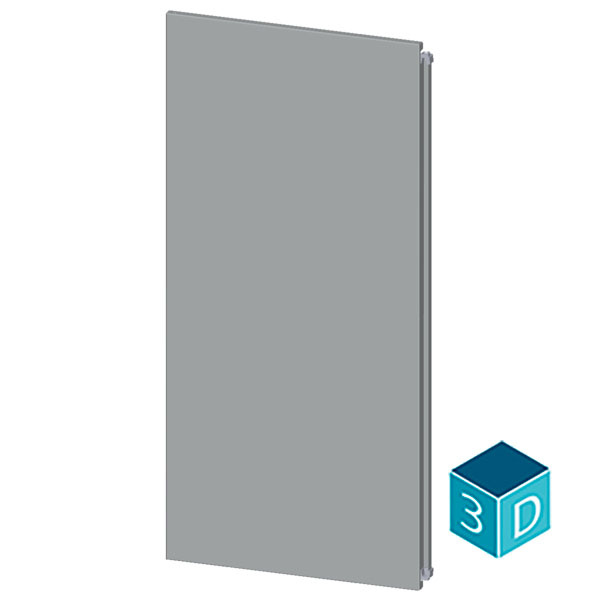

Siemens 8GK9510-7KK31. ALPHA 160/400 DIN spare part door, door half, left H = 1100 mm, W = 525 mm IP43, IP44, IP55, RAL 9016, protection class 1 and 2.
Specifications
Mechanical
Net Weight6.74 kg
Dimensions
Width525 mm
Height1 100 mm
Other
colorTraffic white
materialsteel
product brand nameALPHA
product designationDoor half
protection class IPIP55
design of the productClosed
design of the surfacePowder-coated
opening direction of the doorleft
design of the product EMC versionNo
operating resource protection classSafety class 1 and 2
