SIWAREX DB
Part Number: 7MH5001-0AD20
Brand
Category
Heavy duty scale

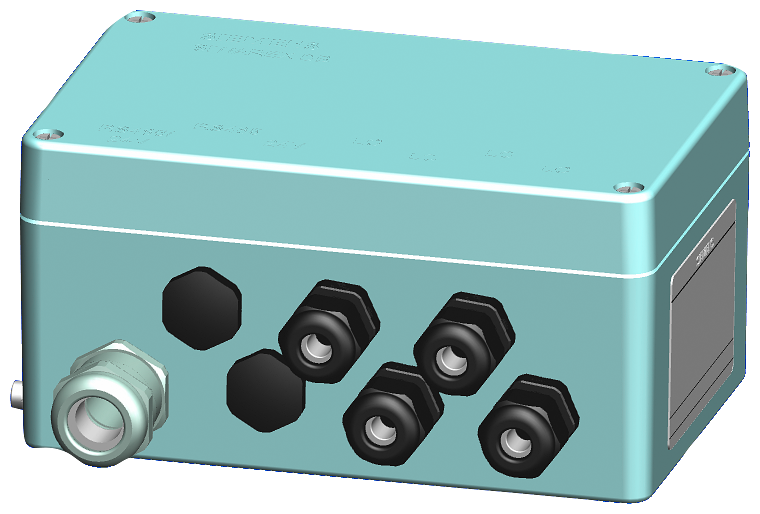

Siemens 7MH5001-0AD20. SIWAREX DB, four-channel digital junction box for additional diagnostic options for analog load cells / strain gauges (full bridges) for SIWAREX WP weighing module, 1xRS485, 4xLC load cell interface (1-4mV/V), aluminum die-cast housing, protection class: IP66.
Specifications
Dimensions
Width160 mm
Height100 mm
Depth81 mm
Other
CE markYes
UKCA markYes
UL approvalYes
Weight, approx.0.95 kg
RoHS conformityYes
Design of housingDie-cast aluminum
Type of supply voltage24 V DC
IP degree of protectionIP66, Nema 4X for devices without explosion protection; IP65 for devices with explosion protection
Number of digital inputs0
Product type designationSIWAREX DB
Delivery quantity in pieces1
— Connectable cable cross-sections for flexible cables with end sleeve, max.16
— Connectable cable cross-sections for flexible cables with end sleeve, min.24
