Active

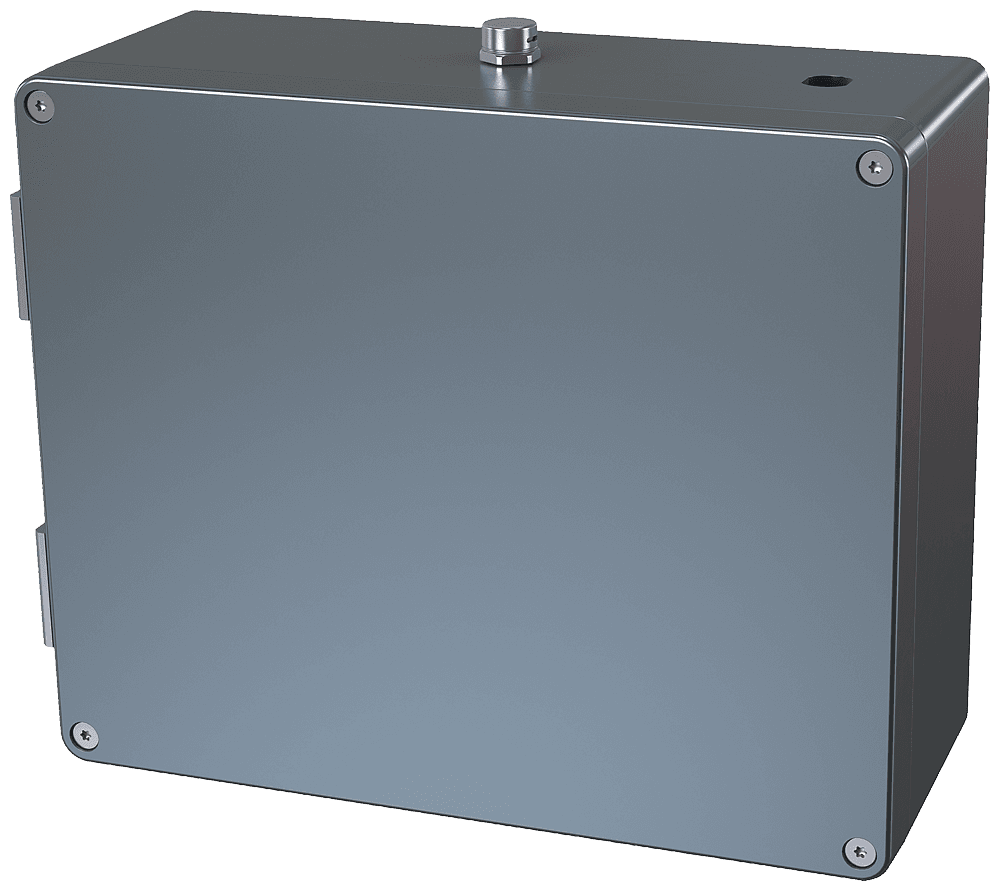

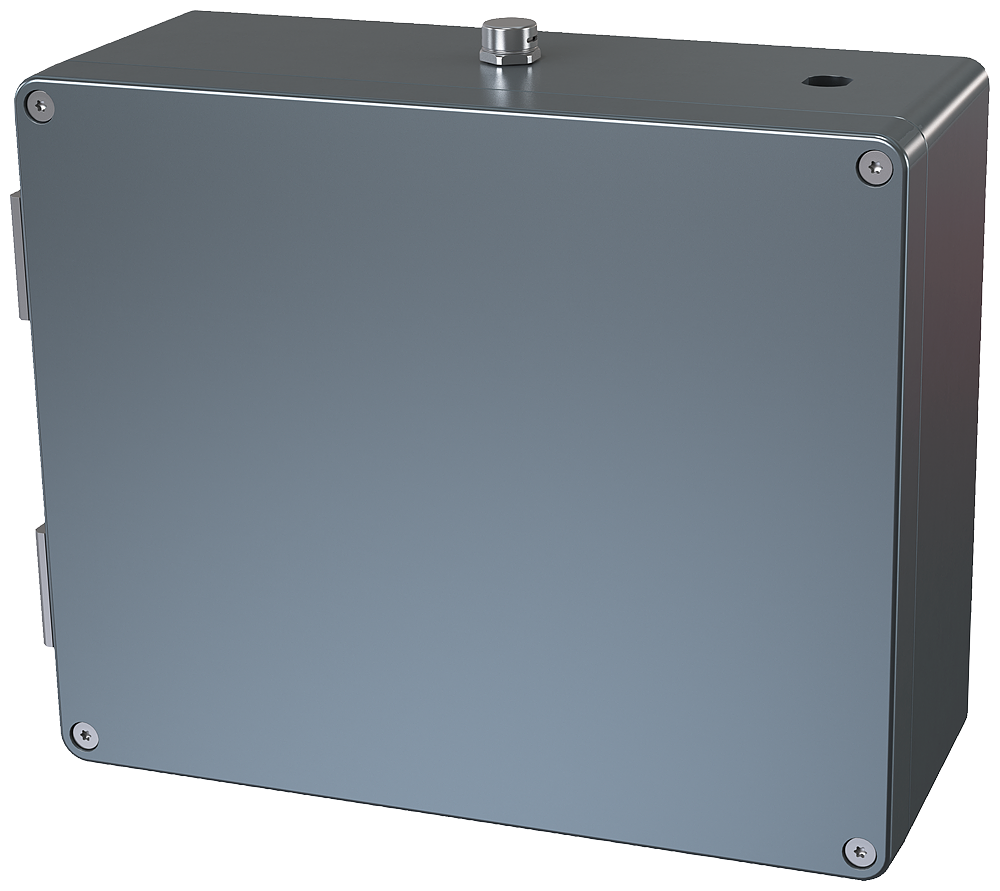

Degree of protection of aluminum enclosure IP68; suitable for SIMATIC RTU3000C; temperature range -40 to +80 °C; Cover with pin-torx screws; 7 Cable bushings and bushing for mobile radio antenna prepared; please order the cable glands and sealing plugs in the required number separately .
Part Number: 6NH3112-3BA00-1XX3
Brand
Category
Empty cabinet
Siemens 6NH3112-3BA00-1XX3. Degree of protection of aluminum enclosure IP68; suitable for SIMATIC RTU3000C; temperature range -40 to +80 °C; Cover with pin-torx screws; 7 Cable bushings and bushing for mobile radio antenna prepared; please order the cable glands and sealing plugs in the required number separately ..
Specifications
Mechanical
Net Weight3395 g

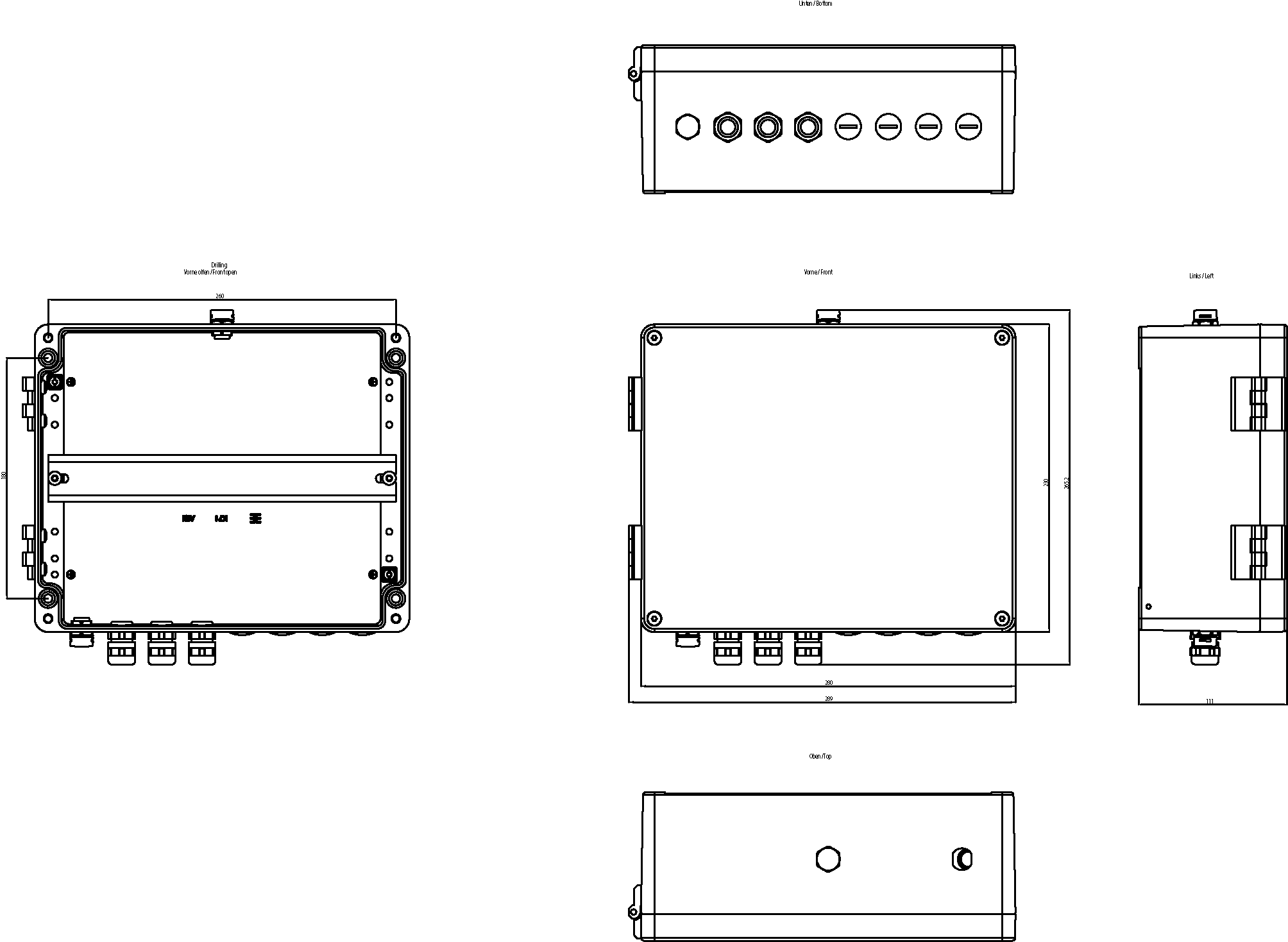

Dimensions
Width280 mm
Height230 mm
Depth111 mm
Other
colorgray (RAL 7001)
materialaluminum, powder coated
protection class IPIP68; 1 m / 24 h, observe the installation instructions
suitability for useDegree of protection IP68 1 m / 24 h
security informationSiemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement – and continuously maintain – a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7)
suitability for operationsuitable for devices of the SIMATIC RTU3000C range
design of the screw head / torxYes; Pin-Torx
installation or assembly noteRequired tightening torques: Cable gland with article number 6NH3112-3BA00-1XX4: Cap nut 5 - 6 Nm, fittings 3.5 - 4.5 Nm, sealing plug with the article number 6NH3112-3BA00-1XX5: 2.5 - 3.5 Nm
