Active

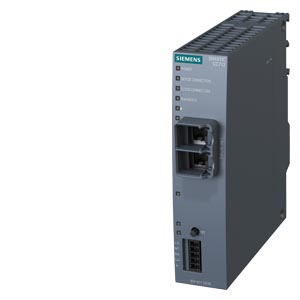

SIMATIC CloudConnect 7
Part Number: 6GK1411-1AC00
Brand
Category
Network router
Siemens 6GK1411-1AC00. SIMATIC CloudConnect 7, CC712 IoT Gateway for connection of programmable controllers to cloud services and OPC 2xEthernet RJ45 field protocols: S7, S7-Plus, OPC UA, Modbus MES/cloud protocols: MQTT, HTTP, OPC UA.
Specifications
Mechanical
Net Weight0.3 kg
Dimensions
Width35 mm
Height147 mm
Depth127 mm
Other
power loss [W]4.3 W
module formatCompact
supply voltage24 V
protection class IPIP20
security informationSiemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement – and continuously maintain – a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7)
supply voltage / external10.8 ... 28.8 V
— in communication mode / typical180 mA
certificate of suitability / ATEXYes
certificate of suitability / IECExYes
number of variables (items) / maximum1500
protocol / is supported / OPC UA ClientYes
protocol / is supported / OPC UA ServerYes
number of lower-level devices / maximum1
certificate of suitability / CE markingYes
product function / web-based diagnosticsYes
type of voltage / of the supply voltageDC
certificate of suitability / KC approvalYes
certificate of suitability / EAC approvalYes
certificate of suitability / UKCA markingYes
number of data points per device / maximum500
certificate of suitability / cULus approvalYes
supply voltage / external / at DC / rated value24 V
certificate of suitability / FM registrationYes
certificate of suitability / RoHS conformityYes
operating mode / Virtual Private Network (VPN)No
certificate of suitability / ULhazloc approvalYes
number of active connections / for cloud connectivity3
number of possible connections / for OPC UA server / maximum1
number of possible connections / to OPC UA clients / maximum10
certificate of suitability / Regulatory Compliance Mark (RCM)Yes
product feature / for cloud connectivity / buffered message frame memoryYes
certificate of suitability / CCC / for hazardous zone according to GB standardYes
