Active
MV500 LED panel
Part Number: 6GF3500-8DF30-3DA0
Brand
Category
LED-module

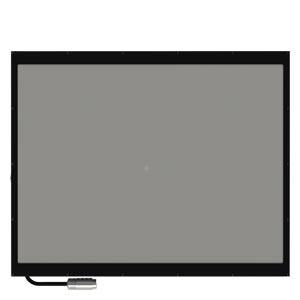

Siemens 6GF3500-8DF30-3DA0. MV500 LED panel, diffuse white Illuminated area: 40 cm x 30 cm; lighting distance: 0mm..2000 mm; illuminant: LED 850 Nm; Degree of protection IP67; For SIMATIC MV500 external, 24 V power supply; lamp holder: 6GF3500-8CD dimensions: 420x 340x 22 mm (WxHxD) scope of delivery: panel light and 10m cable M16-open end; scope of delivery: panel light;.
Specifications
Mechanical
Net Weight3900 g
Dimensions
Width422 mm
Height340 mm
Depth22 mm
Other
colorblack
materialmetal/PMMA
suitability for useSwitching mode via MV500-STROBE signal, no flash mode
power loss [W] / maximum81 W
security informationSiemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement – and continuously maintain – a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7)
supply voltage / at DC24 V
consumed current / maximum5000 mA
suitability for operationfor MV500
type of voltage / of the supply voltageDC
