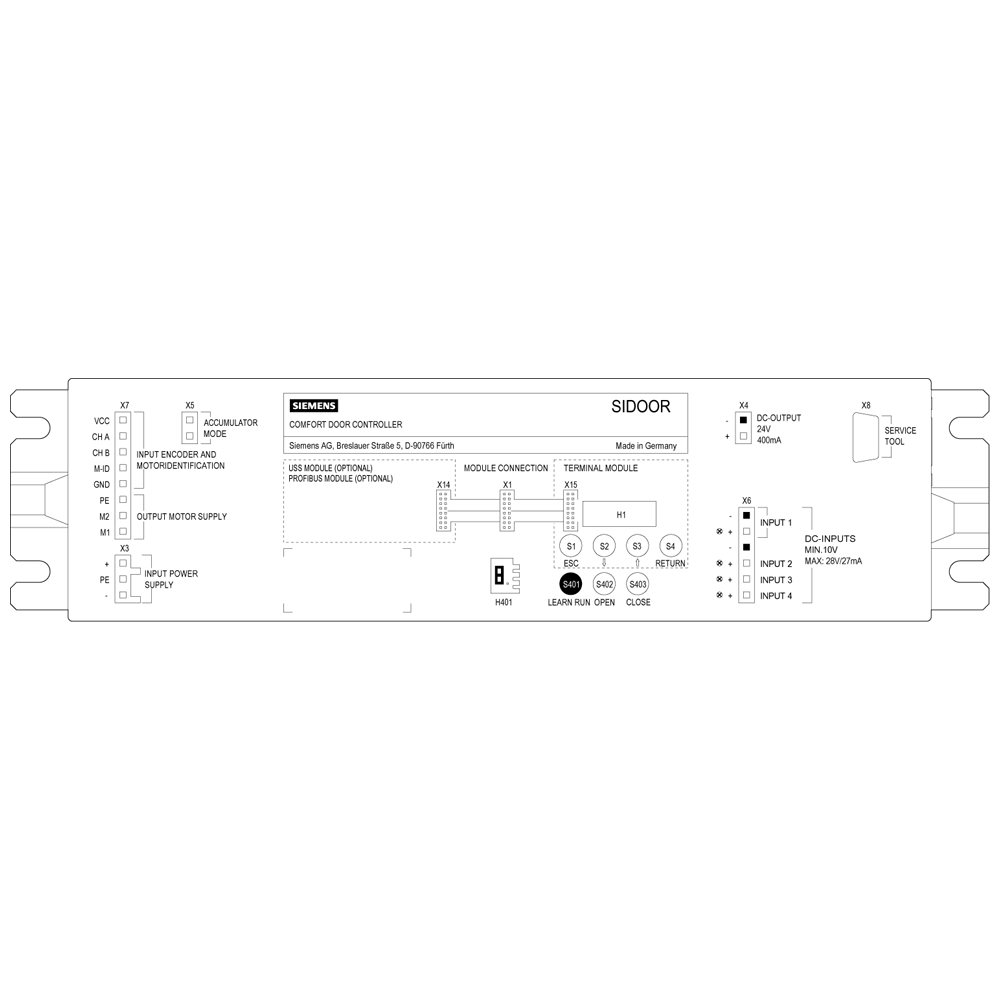

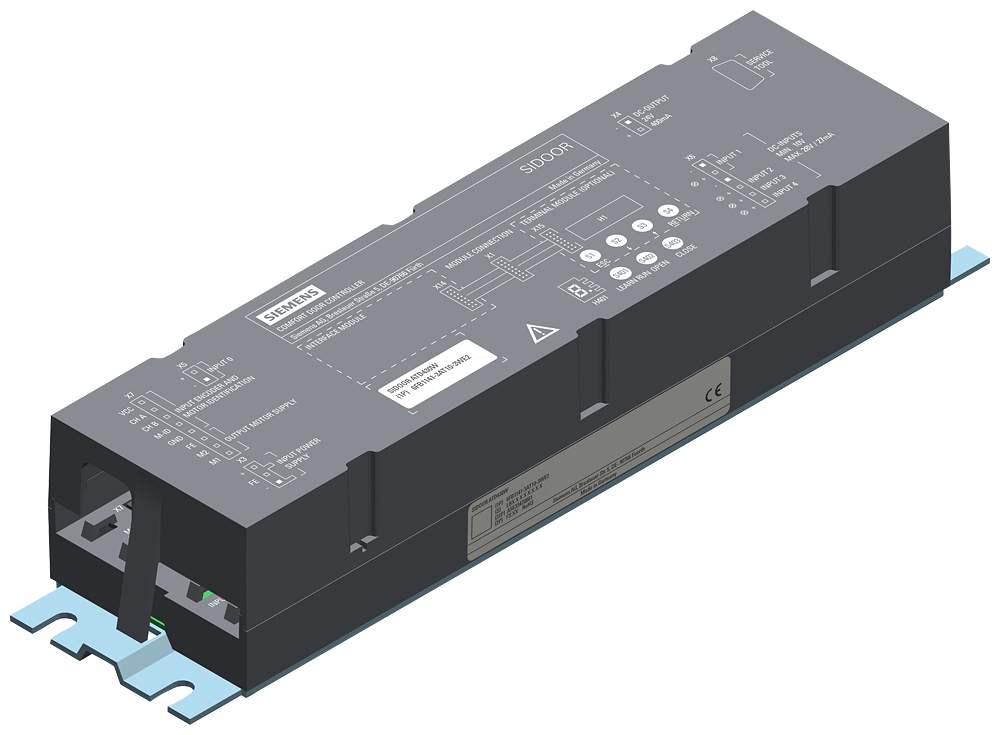

SIDOOR ATD420W control device for machine tools
Part Number: 6FB1141-2AT10-3WE2
Brand
Category
Door control system
Siemens 6FB1141-2AT10-3WE2. SIDOOR ATD420W control device for machine tools, up to 700 kg door weight, 36 V DC, 1*RS485, 4*DI, 2*relay, 1*PROFIBUS, 1*24VDC Out, -20 to +50 °C, EN ISO 13849-1 performance level d, EN ISO 14120.
Specifications
Dimensions
Width320 mm
Height60 mm
Depth80 mm
Other
I²t, min.30 A²·s
CE markYes
UL approvalYes
Overload-proofYes
Rated value (DC)36 V
— at 30 V DC, max.0.5 A
— at 30 V DC, min.0.01 A
PNO certificateYes
Counterforce, max.75 N
Standard for EMCEN 61000-6-2 / EN 61000-6-4
Output voltage (DC)24 V; Ensure correct polarity! CAUTION: Do not supply with external voltage!
Active power input145 W
EAC (formerly Gost-R)Yes
Interfaces/bus typePROFIBUS according to IEC 61784-3
Kinetic energy, max.100 J
short-circuit proofYes
Weight of door, max.600 kg
Degree of pollution2
Number of bus nodes32
Standard for safetyEN 61010-1 / EN 61010-2-201 / UL 61010-1 / UL 61010-2-201 / EN ISO 13849-1 Cat. 2 PL d
Overvoltage category2
China RoHS complianceYes
Active power input, max.540 W
Control inputs isolatedYes
IP degree of protectionIP20
Product type designationATD420W
TÜV Inspectorate approvalYes
Control inputs p-switchingYes
Opening width of door, max.5 m
Opening width of door, min.0.3 m
Design of the power supplyVia SIDOOR TRANSFORMER / SIDOOR TRANSFORMER UL / NT40 / SITOP PSU8200 13 A, 36 V or via DC
Optional product expansionTRANSFORMER (6FB1112-0AT20-2TR0), TRANSFORMER UL (6FB1112-0AT21-2TR0), NT40 (6FB1112-0AT20-3PS0), DIN rail holder (6FB1144-0AT00-3AS0)
Active power input (standby mode)5 W
Protection in case of DC supplyUse of a circuit breaker in the supply path according to 60898-1, 8A, C-characteristic type SIEMENS: 5SY4108-7 or 5SY4108-7KK11
permissible range, lower limit (DC)19.2 V
permissible range, upper limit (DC)38 V
Operating cycle frequency of door, max.180 1/h
Installation and mounting instructionsNo direct solar radiation, final application-specific requirements must be observed. Installation outside a control cabinet only in horizontal mounting position
Manufacturer's article no. of the usable motor6FB1103-0AT10-4MB0, 6FB1103-0AT10-3MC0, 6FB1103-0AT10-3MD0, 6FB1103-0AT11-4MB0, 6FB1103-0AT11-3MC0, 6FB1103-0AT11-3MD0, 6FB1103-0AT14-4MB1, 6FB1103-0AT13-4MB1, 6FB1103-0AT14-3MC2, 6FB1103-0AT13-3MC2, 6FB1103-0AT14-3MG2, 6FB1103-0AT13-3MG2
Certificate of suitability according to EN 81No
Manufacturer's article no. of the usable power supply unit6FB1112-0AT20-2TR0, 6FB1112-0AT21-2TR0, 6FB1112-0AT20-3PS0, 6EP3446-8SB10-0AY0
