Active

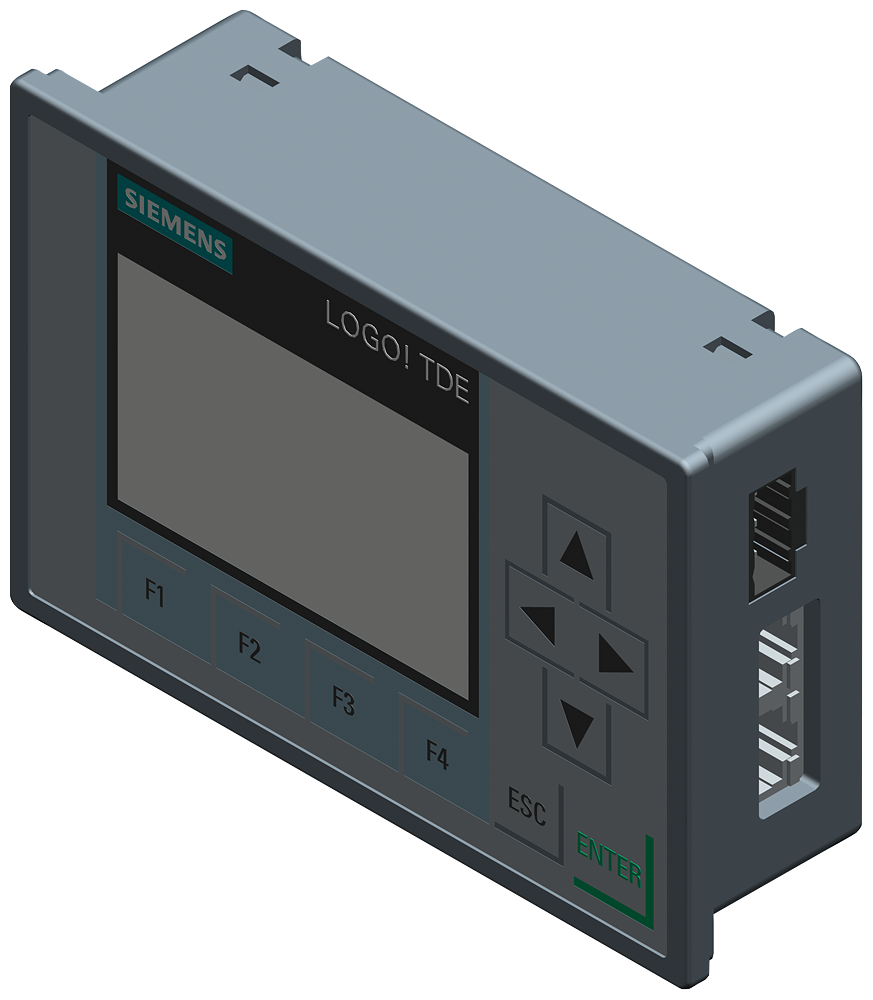

LOGO! TDE text display
Part Number: 6ED1055-4MH08-0BA1
Brand
Category
Text panel
Siemens 6ED1055-4MH08-0BA1. LOGO! TDE text display, 6-line, 3 background colors, 2 Ethernet ports, for LOGO! 8.
Specifications
Dimensions
Width128.2 mm
Height86 mm
Depth38.7 mm
Other
CE markYes
FM approvalYes
KC approvalYes
UL approvalYes
Weight, approx.220 g
mounting depth38.7 mm
Power loss, typ.1.8 W; At 24 V DC
Rated value (DC)12 V; 12/24 V DC, 24 V AC
IP (at the front)IP65
Design of displayFSTN
Design of housingplastic
belongs to productLOGO!
Suitability for useCan be used with LOGO! 8 and higher
Diagnostics functionNo
Type of supply voltageAC/DC
Product type designationText display
Delivery quantity in pieces1
Wall mounting/direct mountingNo
— Number of configurable system keys0
— global warming potential, (total) [CO2 eq]43 kg
— global warming potential, (during operation) [CO2 eq]34.5 kg
— global warming potential, (during production) [CO2 eq]8.5 kg
— global warming potential, (after end of life cycle) [CO2 eq]-0.065 kg
