FCCYes
cULusYes; UL 61010-1, UL 61010-2-201
DesignBuilt-in unit
CE markYes
KC approvalYes
Built-in unitYes; Portrait mode possible
VESA mountingYes; VESA 100 x 100 integrated
Front mountingYes
mounting depth59 mm
Power loss, max.60 W
Power loss, typ.17 W
Rated value (DC)24 V
IP (at the front)IP65
Screen diagonal15.6 in; 15"
USB on the rearYes; 2x onboard
Control elementssingle-touch screen
Number of colors16 000 000; 16 million
Design of displayTFT display, LED backlighting

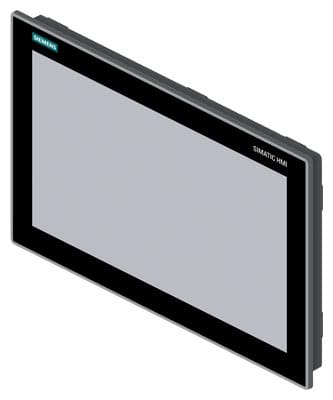

Short designationBasic Flat Panel 15" Touch
EAC (formerly Gost-R)Yes
RCM (formerly C-TICK)Yes

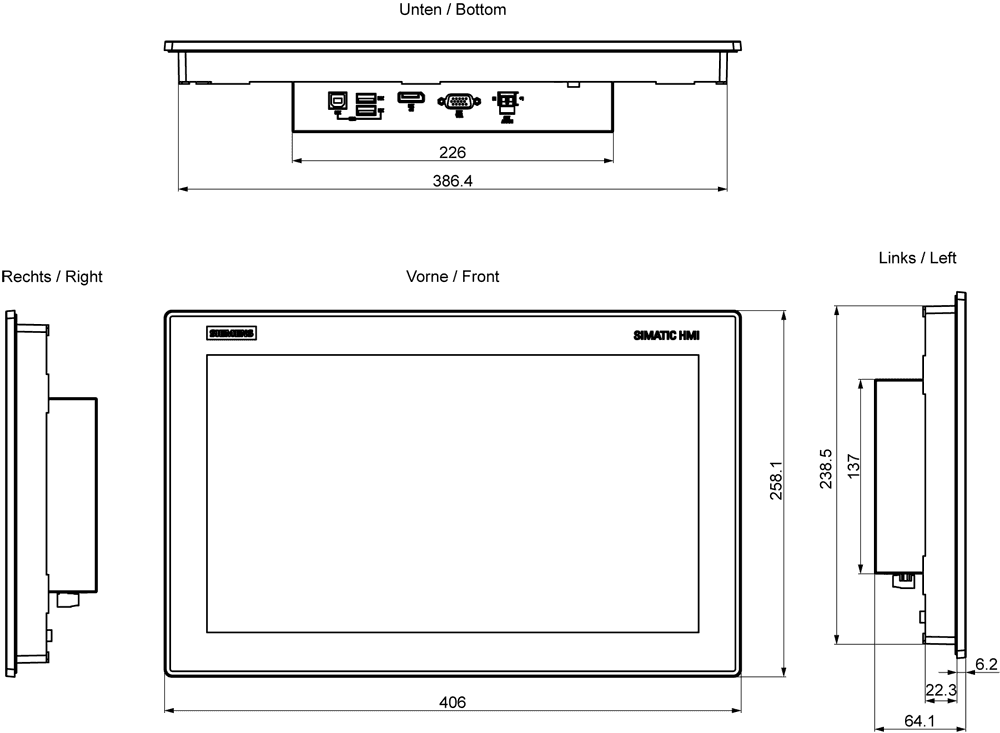

Mounting cutout, width388.4 mm
Mounting cutout, height240.5 mm
Type of supply voltageDC
Height of housing front258 mm
Number of USB interfaces2; USB 2.0 (downstream)
Product type designationIFP1500 Basic
Weight (without packaging)4.1 kg
Width of the housing front406 mm
permissible range, lower limit (DC)20.4 V
permissible range, upper limit (DC)28.8 V
On Screen Display (OSD) configurationNo
Mounting in portrait format possibleYes
Mounting in landscape format possibleYes
maximum permitted forward tilt angle from vertical45°
maximum permitted backward tilt angle from vertical45°
