FCCYes
cULusYes; UL 61010-1, UL 61010-2-201
DesignBuilt-in unit
CE markYes
IP (rear)IP65
KC approvalNo
Built-in unitYes; Portrait mode possible
Display width261.1 mm
VESA mountingYes; VESA 75 x 75 integrated
Display height163.2 mm
Front mountingYes
mounting depth49 mm
Power loss, max.14 W
Power loss, typ.11 W
Rated value (DC)24 V
IP (at the front)IP65
Screen diagonal12.1 in; 12"
USB on the rearYes; 1x onboard
Control elementssingle-touch screen
Number of colors16 000 000; 16.2 million
Design of displayTFT widescreen display, LED backlighting

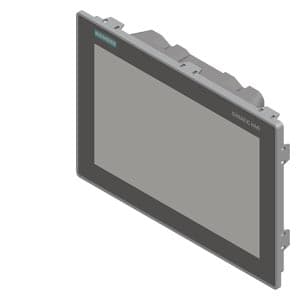

Short designationBasic Flat Panel 12" Touch
EAC (formerly Gost-R)Yes
RCM (formerly C-TICK)Yes
Screen diagonal [cm]30.7 cm

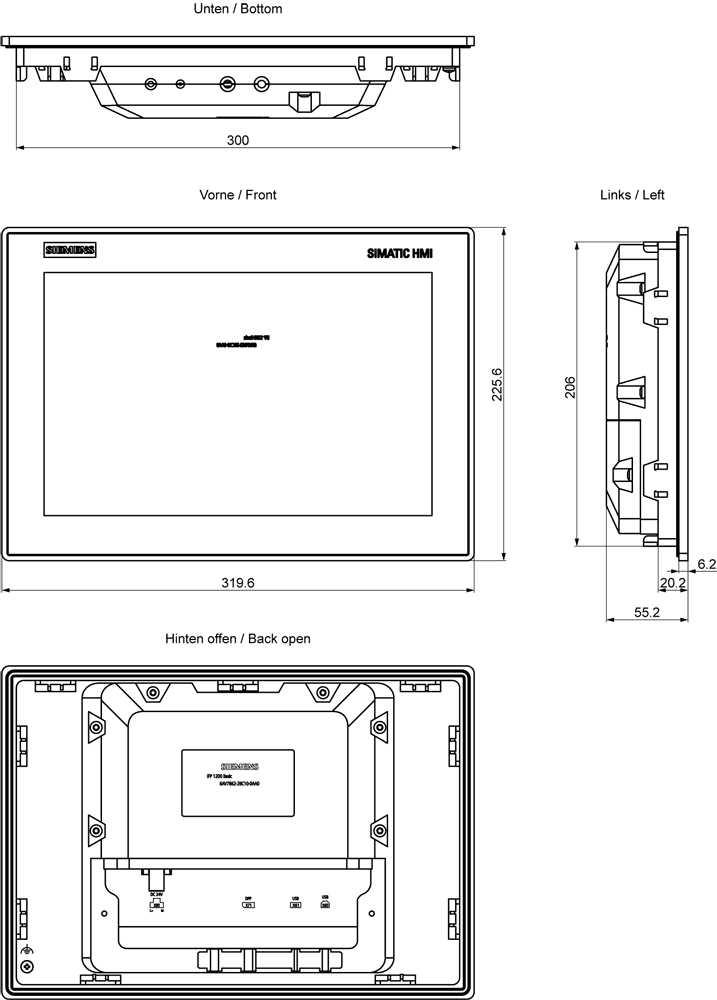

Mounting cutout, width302 mm
Mounting cutout, height208 mm
Type of supply voltageDC
Height of housing front225.6 mm
Number of USB interfaces1; USB 2.0 (downstream)
Product type designationIFP1200 Basic C
Weight (without packaging)2.8 kg
Width of the housing front319.6 mm
permissible range, lower limit (DC)20.4 V
permissible range, upper limit (DC)28.8 V
On Screen Display (OSD) configurationNo
