Active

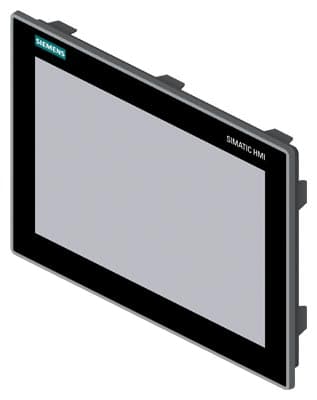

SIMATIC IFP1200 Basic Flat Panel 12" display (16:10)
Part Number: 6AV7862-2BC00-0AA0
Brand
Category
Recessed mounted monitor
Siemens 6AV7862-2BC00-0AA0. SIMATIC IFP1200 Basic Flat Panel 12" display (16:10), Touch, 1280 x 800 pixels, standard up to 5 m, for 24V DC, DisplayPort/VGA interface.
Specifications
Other
FCCYes
cULusYes; UL 61010-1, UL 61010-2-201
DesignBuilt-in unit
CE markYes
KC approvalYes
Built-in unitYes; Portrait mode possible
VESA mountingYes; VESA 100 x 100 integrated
Front mountingYes
mounting depth50.1 mm
Power loss, max.60 W
Power loss, typ.13 W
Rated value (DC)24 V
IP (at the front)IP65
Screen diagonal12.1 in; 12"
USB on the rearYes; 2x onboard
Control elementssingle-touch screen
Number of colors16 000 000; 16 million
Design of displayTFT widescreen display, LED backlighting
Short designationBasic Flat Panel 12" Touch
EAC (formerly Gost-R)Yes
RCM (formerly C-TICK)Yes

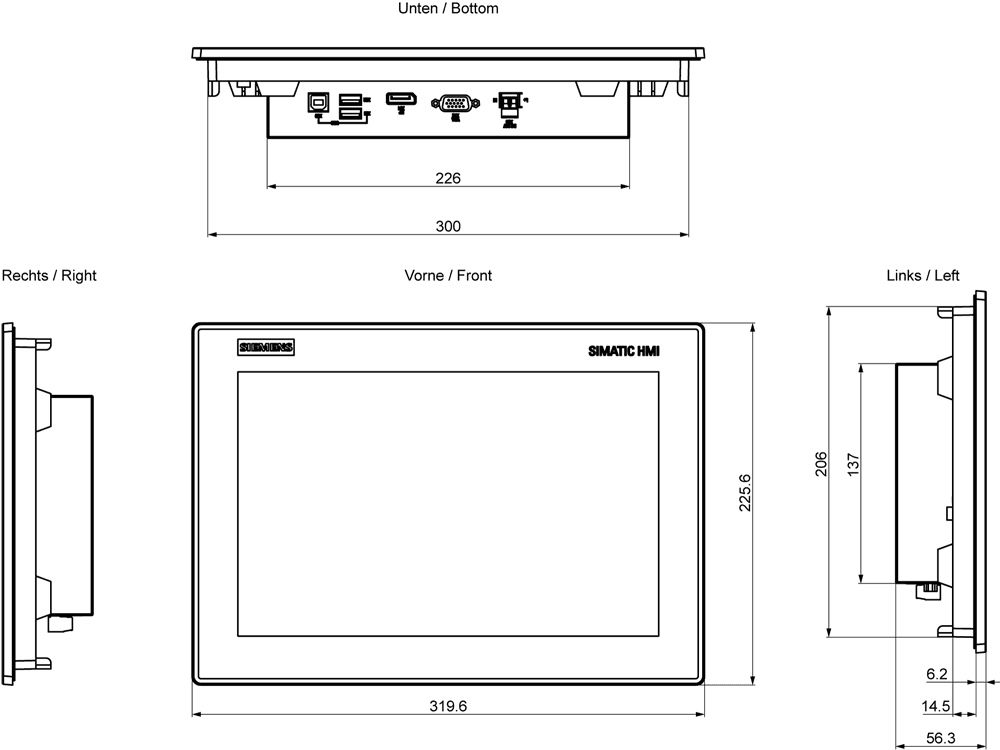

Mounting cutout, width302 mm
Mounting cutout, height208 mm
Type of supply voltageDC
Height of housing front225.6 mm
Number of USB interfaces2; USB 2.0 (downstream)
Product type designationIFP1200 Basic
Weight (without packaging)2.7 kg
Width of the housing front319.6 mm
permissible range, lower limit (DC)20.4 V
permissible range, upper limit (DC)28.8 V
On Screen Display (OSD) configurationNo
Mounting in portrait format possibleYes
Mounting in landscape format possibleYes
maximum permitted forward tilt angle from vertical45°
maximum permitted backward tilt angle from vertical45°
