CCCNo; in preparation
EMCCE, EN 55011, EN 61000-6-4, EN 61000-6-2
cULusYes
DesignBuilt-in unit
CE markYes
IP (rear)IP20
KC approvalNo; in preparation
UL approvalYes
Built-in unitYes; Portrait mode possible
Display width261.1 mm
VESA mountingYes; VESA 100 x 100 integrated
Viewing angle176° x 176°
Display height163.2 mm
Front mountingYes
mounting depth65.7 mm
Power loss, max.25 W
Power loss, typ.15 W
Rated value (DC)24 V; PELV / SELV floating
IP (at the front)IP66K, IP69
Screen diagonal12.1 in; 12"
USB on the rearYes; 2x onboard
Control elementsmulti-touch screen
Number of colors16 777 216; 24 bit
Design of displayTFT widescreen display, LED backlighting

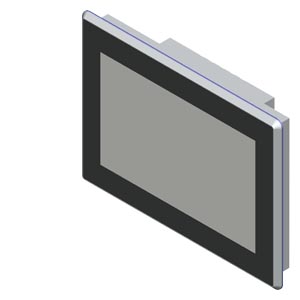

Short designationFlat Panel 12" multi-touch ext. hygienic
RCM (formerly C-TICK)Yes
Screen diagonal [cm]30.7 cm

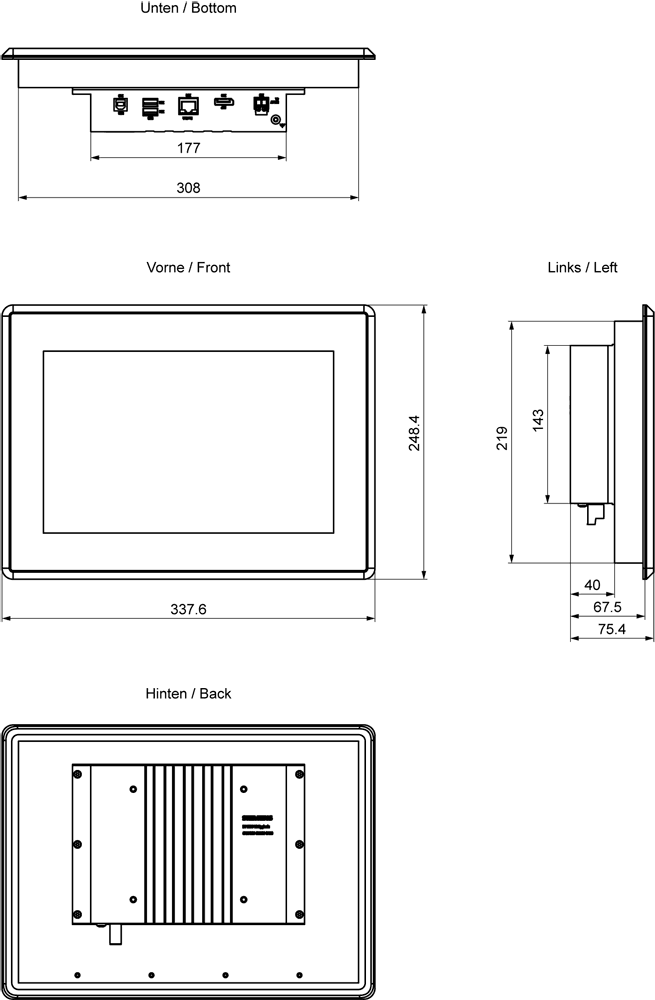

Mounting cutout, width310 mm; Tolerance: +1 mm
Mounting cutout, height221 mm; Tolerance: +1 mm
Type of supply voltageDC
Current consumption, max.1 A
Enclosure material (rear)stainless steel, aluminum
Height of housing front248.4 mm
Number of USB interfaces2; USB 2.0 type A
Product type designationIFP1200 V2 ext. hyg.
Weight (without packaging)3.9 kg
Starting current inrush I²t0.5 A²·s
Width of the housing front337.6 mm
Connection for keyboard/mouseUSB
Current consumption (rated value)0.65 A
permissible range, lower limit (DC)19.2 V
permissible range, upper limit (DC)28.8 V
On Screen Display (OSD) configurationNo; Adjustable by means of software
Mounting in portrait format possibleYes
Mounting in landscape format possibleYes
maximum permitted forward tilt angle from vertical35°
maximum permitted backward tilt angle from vertical35°
