CCCNo; in preparation
EMCCE, EN 55011, EN 61000-6-4, EN 61000-6-2
cULusYes
DesignBuilt-in unit
CE markYes
IP (rear)IP20
KC approvalNo; in preparation
UL approvalYes
Built-in unitYes; Portrait mode possible
Display width408.96 mm
VESA mountingYes; VESA 100 x 100 integrated
Viewing angle178° x 178°
Display height230.04 mm
Front mountingYes
mounting depth67.7 mm
Power loss, max.35 W
Power loss, typ.29 W
Rated value (DC)24 V; PELV / SELV floating
IP (at the front)IP66K, IP69
Screen diagonal18.5 in; 19"
USB on the rearYes; 2x onboard
Control elementsmulti-touch screen
Number of colors16 777 216; 24 bit
Design of displayTFT widescreen display, LED backlighting

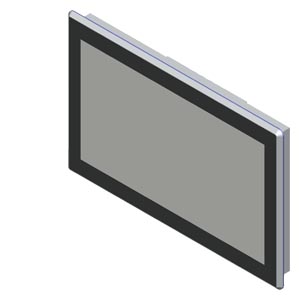

Short designationFlat Panel 19" multi-touch ext. hygienic
RCM (formerly C-TICK)Yes
Screen diagonal [cm]47 cm
Mounting cutout, width448 mm; Tolerance: +1 mm
Mounting cutout, height278 mm; Tolerance: +1 mm
Type of supply voltageDC
Current consumption, max.1.5 A
Enclosure material (rear)stainless steel, aluminum
Height of housing front308.2 mm
Number of USB interfaces2; USB 2.0 type A
Product type designationIFP1900 V2 ext. hyg.
Weight (without packaging)6.2 kg
Starting current inrush I²t0.5 A²·s
Width of the housing front478.4 mm
Connection for keyboard/mouseUSB
Current consumption (rated value)1.2 A
permissible range, lower limit (DC)19.2 V
permissible range, upper limit (DC)28.8 V
On Screen Display (OSD) configurationNo; Adjustable by means of software
Mounting in portrait format possibleYes
Mounting in landscape format possibleYes
maximum permitted forward tilt angle from vertical35°
maximum permitted backward tilt angle from vertical35°
