EMCCE, EN 55016-2-3, EN 61000-6-4:2007 + A1:2011, EN IEC 61000-6-4:2019, EN 61000-6-2:2005, EN IEC 61000-6-2:2019
cULusYes
DesignBuilt-in unit
CE markYes
IP (rear)IP20
UL approvalYes; cULus, cUL
Built-in unitYes; Portrait mode possible
Display width304.1 mm
VESA mountingYes; VESA 100 x 100 integrated
Viewing angle170° x 160°
Display height228.1 mm
Front mountingYes
mounting depth63.4 mm
Power loss, max.20 W
Power loss, typ.15 W
Rated value (DC)24 V; PELV / SELV floating
IP (at the front)IP65
Screen diagonal15 in
USB on the rearYes; 2x onboard
Control elementsmulti-touch screen
Number of colors16 777 216; 24 bit
USB at the frontNo
Design of displayTFT display, LED backlighting
Short designationFlat Panel 15" multi-touch ext.
Inrush current, max.2.8 A
Screen diagonal [cm]38.01 cm
Mounting cutout, width448 mm; Tolerance: +1 mm
Weight (with packaging)6 kg
Mounting cutout, height288 mm; Tolerance: +1 mm
Type of supply voltageDC
Current consumption, max.1.15 A
Enclosure material (rear)aluminum
Height of housing front306.2 mm
Number of USB interfaces3; 2x USB 2.0 type A, 1x USB 2.0 type B

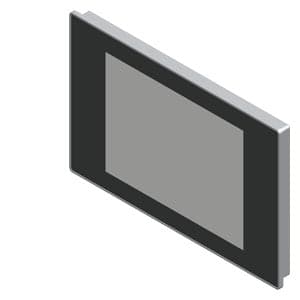

Product type designationSIMATIC IFP1500 V2 Extended 4:3
Weight (without packaging)4.7 kg
Starting current inrush I²t0.5 A²·s
Width of the housing front466 mm
Connection for keyboard/mouseUSB
Current consumption (rated value)0.7 A
permissible range, lower limit (DC)19.2 V
permissible range, upper limit (DC)28.8 V
On Screen Display (OSD) configurationNo; Adjustable by means of software
Mounting in portrait format possibleYes
Mounting in landscape format possibleYes
maximum permitted forward tilt angle from vertical35°
maximum permitted backward tilt angle from vertical35°
