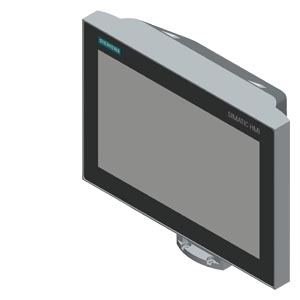

SIMATIC ITC1200 V3 PRO
Part Number: 6AV6646-1BB12-0AA1
Brand
Category
Panel PC
Siemens 6AV6646-1BB12-0AA1. SIMATIC ITC1200 V3 PRO, industrial thin client, 12" widescreen TFT display, capacitive touch sensor, supported protocols: RDP, VNC, SmartServer HTML5 and others, standard design, stand mounting.
Specifications
Other
cULusYes
DesignPedestal mounting
CE markYes
IP (rear)IP65
PDF readerYes
USB memoryYes; USB storage medium can be connected
FM approvalYes
KC approvalYes
Web browserYes; HTML5, CSS
Built-in unitNo
Display width261 mm
Display height163 mm
mounting depth101 mm; Without basic adapter
Rated value (DC)24 V
Stand mountingYes; Prepared for pedestal and extension components
IP (at the front)IP65
Screen diagonal12.1 in
Number of colors16 777 216
Design of displayTFT widescreen display, LED backlighting
EAC (formerly Gost-R)No; in preparation
RCM (formerly C-TICK)Yes
Active power input, typ.31.2 W
Type of supply voltage24 V DC
Current consumption, max.1.6 A
Height of housing front225 mm; Without basic adapter
Number of USB interfaces4; on rear
Product type designationITC1200 V3 PRO
Weight (without packaging)5 kg
Starting current inrush I²t0.5 A²·s
Width of the housing front313 mm
Connection for keyboard/mouseUSB
Current consumption (rated value)1.3 A
permissible range, lower limit (DC)19.2 V
permissible range, upper limit (DC)28.8 V
Number of industrial Ethernet interfaces2; 2 ports (switch)
maximum permitted forward tilt angle from vertical35°
maximum permitted backward tilt angle from vertical35°
