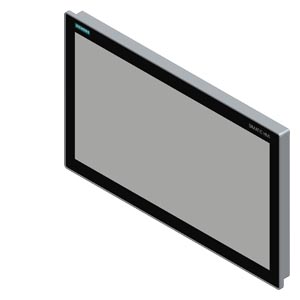

SIMATIC ITC2200 V3
Part Number: 6AV6646-1BA22-1AA1
Brand
Category
Panel PC
Siemens 6AV6646-1BA22-1AA1. SIMATIC ITC2200 V3, industrial thin client, 22" widescreen TFT display, capacitive touch sensor, supported protocols: RDP, VNC, SmartServer HTML5 and others, standard design, built-in unit.
Specifications
Other
cULusYes
DesignBuilt-in unit
CE markYes
PDF readerYes
USB memoryYes; USB storage medium can be connected
FM approvalYes
KC approvalYes
Web browserYes; HTML5, CSS
Built-in unitYes
Display width476 mm
Display height267.8 mm
Front mountingYes
mounting depth73 mm
Rated value (DC)24 V
IP (at the front)IP65
Screen diagonal21.5 in
Number of colors16 777 216
Design of displayTFT widescreen display, LED backlighting
EAC (formerly Gost-R)No; in preparation
RCM (formerly C-TICK)Yes
Mounting cutout, width513 mm
Active power input, typ.40.8 W
Mounting cutout, height315 mm
Type of supply voltageDC
Current consumption, max.2.1 A
Height of housing front331 mm
Number of USB interfaces4; on rear
Product type designationITC2200 V3
Weight (without packaging)7.2 kg
Starting current inrush I²t0.5 A²·s
Width of the housing front529 mm
Connection for keyboard/mouseUSB
Current consumption (rated value)1.7 A
permissible range, lower limit (DC)19.2 V
permissible range, upper limit (DC)28.8 V
Number of industrial Ethernet interfaces2; 2 ports (switch)
maximum permitted forward tilt angle from vertical35°
maximum permitted backward tilt angle from vertical35°
