SIMATIC HMI TP1000F MOBILE 10.0" TFT display
Part Number: 6AV2145-6KB20-0AS0
Brand
Category
Mobile panel

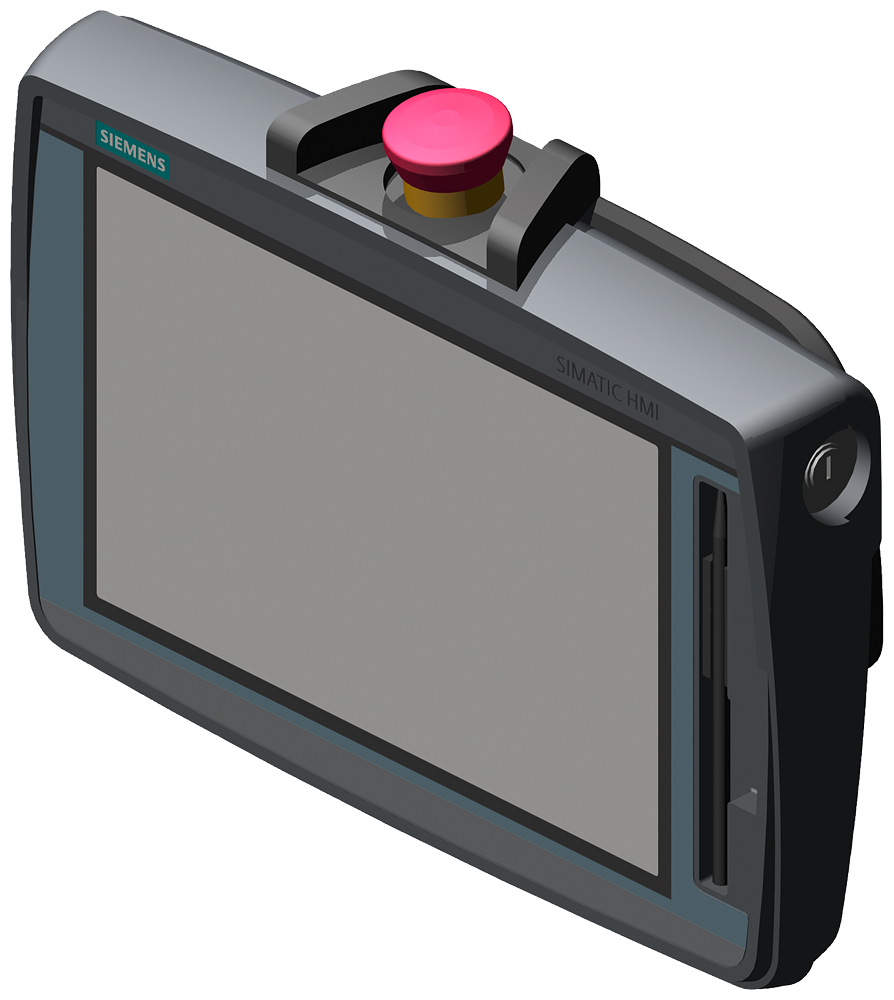

Siemens 6AV2145-6KB20-0AS0. SIMATIC HMI TP1000F MOBILE 10.0" TFT display, 1280x800 pixels, 16 million colors, Touch operation, touch pen, 1x PROFINET/Industrial Ethernet interface, 1x multimedia card, 1x USB, key-operated switch, acknowledgement button, 1 emergency stop/stop button confiigurable from WinCC Comfort V14.
Specifications
Other
MPINo
RAMYes
— CSVYes
— RDBYes
— TXTNo
— F1...Fx0
cULusYes
FlashYes
CE markYes
PrinterYes
PROFIBUSNo
PROFINETYes
— EthernetYes
LibrariesYes
Power LEDNo
PROFIsafeYes
— retentiveYes
EtherNet/IPYes
USB memoryYes
VibrationsNo
— US EnglishYes
— USB memoryYes
KC approvalNo
— Memory cardYes
LED for safeNo
Color displayYes
IP65 (all-round)Yes
Network cameraYes
Processor typeARM
Rated value (DC)24 V
LED for batteryNo
Marine approvalNo
Screen diagonal10.1 in
— maintenance-freeYes
Number of colors16 777 216
Design of displayTFT widescreen display, LED backlighting
Message indicatorYes
Recipe managementYes
— Number of entries1 024
— Short-term archiveYes
RCM (formerly C-TICK)Yes
— Circulating bufferYes
— Sequential archiveYes
LED for communicationNo
Weight (with packaging)1.7 kg
Active power input, typ.11 W
Type of supply voltageDC
— Number of bit messages4 000
Height of housing front223.5 mm
Number of SD card slots1
— Number of function keys0
Number of USB interfaces1; USB 2.0
Product type designationTP1000F Mobile
Weight (without packaging)1.6 kg
— Bluetooth radio standardNo
— Number of analog messages200
— Radio standard WLAN 802.11No
Starting current inrush I²t0.2 A²·s
Width of the housing front307.5 mm
Number of RS 232 interfaces0
Number of RS 422 interfaces0
Number of RS 485 interfaces0
Process value display (output)Yes
Number of PROFINET interfaces1
Number of wireless interfaces0
Suitable for safety functionsYes
Memory available for user data12 Mbyte
Number of Visual Basic ScriptsYes
Current consumption (rated value)450 mA
permissible range, lower limit (DC)19.2 V
permissible range, upper limit (DC)28.8 V
Supports protocol for PROFINET IOYes
— Number of function keys with LEDs0
Process value default (input) possibleYes
Additional software components loadableYes; SIMATIC options
Number of industrial Ethernet interfaces1
Alarm system (incl. buffer and acknowledgment)Yes
SIMATIC HMI MM memory card: Multi Media CardYes
SIMATIC HMI SD memory card: Secure Digital memory cardYes
