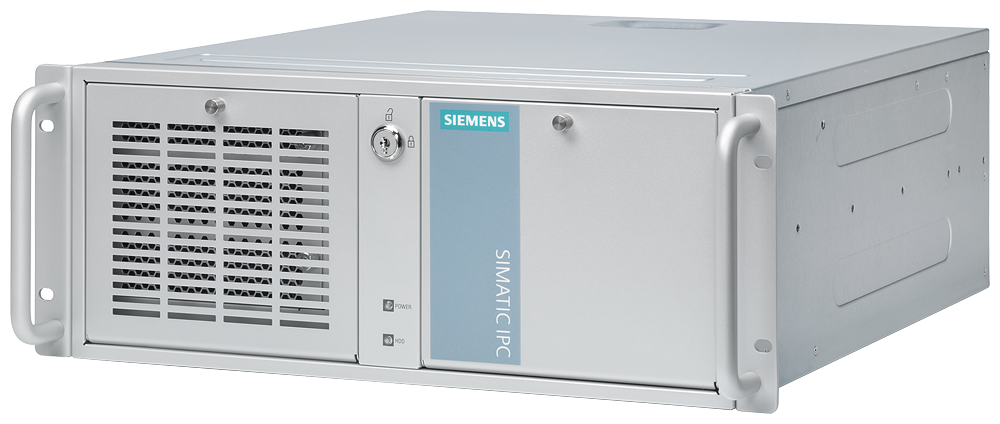

DesignRack PC, 19", 4U
ChipsetIntel Q470
IP (rear)IP20
Mountingfor horizontal or vertical installation
USB port4x USB3.2 and 2x USB2.0 on rear panel, 2x USB2.0 on front panel, 1x USB2.0 vertical and 2x USB2.0 on motherboard
— 100 MbpsYes
Hard diskHDD & SSD
— 1000 MbpsYes
Main memory4 GB to 128 GB DDR4 2666 SDRAM DIMM, ECC optional
Processor typePentium 6400 (2C/4T, 4.0 GHz, 4 MB Cache) / Intel Core i3-10100E (4C/8T, 3.2 (3.8) GHz, 6 MB Cache) / Intel Core i5-10500E (6C/12T, 3.1 (4.2) GHz, 12 MB Cache) / Intel Core i7-10700E (8C/16T, 2.9 (4.5) GHz, 16 MB Cache) / Intel Core i9-10900E (10C/20T, 2.8 (4.7) GHz, 20 MB Cache)
IP (at the front)IP20
serial interface1x RS232 on the rear panel, 3x RS232, 1x RS232/RS422/RS485,1x RS232/RS485 on the motherboard
LED status displayPOWER, HDD
Type of supply voltage100 - 240 V AC
Product type designationRW-543A
without operating systemYes
Capacity of main memory, max.32 Gbyte
Connection for keyboard/mousePS/2 or USB; PS/2 or USB
