Active

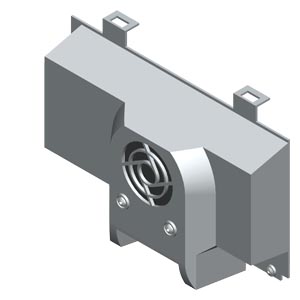

SIPLUS S7-1500 cooling fan 175 mm with conformal coating 0...+70 °C suitable for the following CPUs: SIPLUS S7-1500 CPU 1518-4 (6AG1518-4AP00-4AB0); SIPLUS S7-1500 CPU 1518F-4 (6AG1518-4FP00-4AB0); SIPLUS S7-1500 CPU 1518-4 MFP (6AG1518-4AX00-4AC0)
Part Number: 6AG1593-0AA00-7AA0
Brand
Category
Accessories/spare parts for controls
Siemens 6AG1593-0AA00-7AA0. SIPLUS S7-1500 cooling fan 175 mm with conformal coating 0...+70 °C suitable for the following CPUs: SIPLUS S7-1500 CPU 1518-4 (6AG1518-4AP00-4AB0); SIPLUS S7-1500 CPU 1518F-4 (6AG1518-4FP00-4AB0); SIPLUS S7-1500 CPU 1518-4 MFP (6AG1518-4AX00-4AC0).
Specifications
Dimensions
Width170 mm
Height54 mm
Depth119 mm
Other
AlarmsYes; red LED warning indicator switches on at standstill or low fan speed
Weight, approx.220 g
Power loss, typ.1.7 W
Rated value (DC)24 V
Current-sourcingYes
Inrush current, max.0.17 A
Diagnostics functionYes; digital output OK
— Tightening torque, max.0.3 N·m; screw interlock
— Tightening torque, min.0.3 N·m; screw interlock
Current consumption, max.0.07 A
IP degree of protection20
Controlling a digital inputYes; digital input according to IEC 61131, type 3
Reverse polarity protectionYes
— Stripped length of cables, min.10 mm
Current consumption (rated value)0.05 A
permissible range, lower limit (DC)20.4 V
permissible range, upper limit (DC)27.7 V
— End sleeve acc. to DIN 46228 with plastic sleeve8 mm long
— End sleeve acc. to DIN 46228 without plastic sleeve7 mm long
— Against chemically active substances acc. to EN 60654-4Yes; Class 3 (excluding trichlorethylene)
— Connectable cable cross-sections for massive cables, min.16
— to chemically active substances according to EN 60721-3-3Yes; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to chemically active substances according to EN 60721-3-6No
— to biologically active substances according to EN 60721-3-3Yes; Class 3B2 mold, fungus and dry rot spores (with the exception of fauna); Class 3B3 on request
— to biologically active substances according to EN 60721-3-6No
— to mechanically active substances according to EN 60721-3-3No
— to mechanically active substances according to EN 60721-3-6No
— Connectable cable cross-sections for flexible cables with end sleeve, max.16
— Connectable cable cross-sections for flexible cables with end sleeve, min.24
— Connectable cable cross-sections for flexible cables without end sleeve, max.16
— Connectable cable cross-sections for flexible cables without end sleeve, min.24
— Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04Yes; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) and level LB3 (oil)
