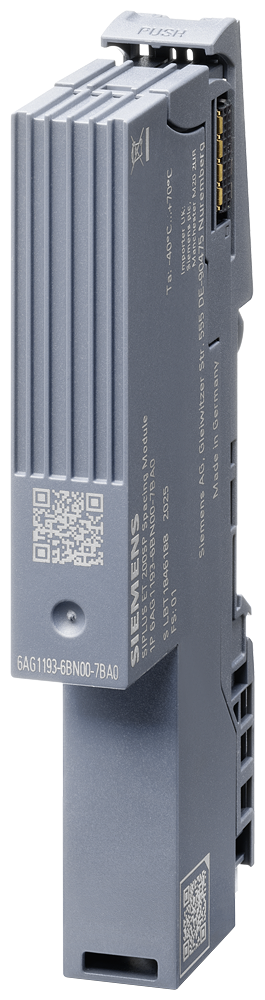

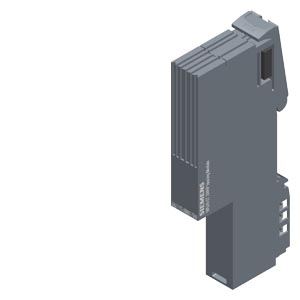

SIPLUS ET 200SP spacing module with conformal coating
Part Number: 6AG1193-6BN00-7BA0
Brand
Category
Fieldbus, decentr. periphery - mounting frame
Siemens 6AG1193-6BN00-7BA0. SIPLUS ET 200SP spacing module with conformal coating, -40…+70 °C, without terminals, bridged to the left, WxH: 15 mm x 117 mm.
Specifications
Dimensions
Width15 mm
Height117 mm
Depth52 mm
Other
Weight, approx.31 g
Rated value (AC)240 V; 400 V (L1 - L2 - L3); 240 V (L1, N)
Rated value (DC)120 V
up to 60 °C, max.10 A
up to 70 °C, max.10 A
For AUX bus, max.10 A
For P1 and P2 bus, max.10 A
— Against chemically active substances acc. to EN 60654-4Yes; Class 3 (excluding trichlorethylene)
— to chemically active substances according to EN 60721-3-3Yes
— to chemically active substances according to EN 60721-3-6Yes
— to biologically active substances according to EN 60721-3-3Yes; Class 3B2 mold, fungus and dry rot spores (with the exception of fauna); Class 3B3 on request
— to biologically active substances according to EN 60721-3-6Yes; Class 6B2 mold, fungal and dry rot spores (excluding fauna)
— to mechanically active substances according to EN 60721-3-3Yes
— to mechanically active substances according to EN 60721-3-6Yes
— Resistant to commercially available coolants and lubricantsYes; Incl. diesel and oil droplets in the air
— Against mechanical environmental conditions acc. to EN 60721-3-3Yes; Class 3M8 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0)
— Against mechanical environmental conditions acc. to EN 60721-3-6Yes; Class 6M4 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0)
— Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04Yes; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) and level LB3 (oil)
