Weight, approx.32 g
Power loss, typ.0.95 W; without sensor supply
Rated value (DC)24 V
usable BaseUnitsBU type A0, A1
Automatic encodingYes
Isolation tested with707 V DC (type test)
Measurement principleActual value encryption (successive approximation)
Bus cycle time (TDP), min.125 µs; Starting from firmware Version V2.0.1
Number of analog inputs2; Differential inputs

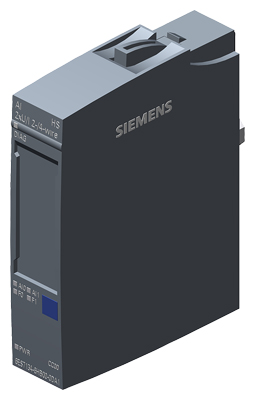

Product type designationAI 2xU/I 2-/4-wire HS
— Input resistance (0 to 10 V)75 kΩ
Calibration possible in RUNNo
Cycle time (all channels), min.125 µs
Reverse polarity protectionYes
— Input resistance (0 to 20 mA)130 Ω
— Input resistance (1 V to 5 V)75 kΩ
— Input resistance (-5 V to +5 V)75 kΩ
— Input resistance (-10 V to +10 V)75 kΩ
Analog input with oversamplingYes
— Input resistance (4 mA to 20 mA)130 Ω
Current consumption (rated value)39 mA; without sensor supply
— Burden of 2-wire transmitter, max.650 Ω
— Input resistance (-20 mA to +20 mA)130 Ω
Crosstalk between the inputs, min.-50 dB
permissible range, lower limit (DC)19.2 V
permissible range, upper limit (DC)28.8 V
Reparameterization possible in RUNYes
Filtering and processing time (TCI), min.80 µs
Linearity error (relative to input range), (+/-)0.03 %
Temperature error (relative to input range), (+/-)0.01 %/K
Color code for module-specific color-coded labelCC00
— Against chemically active substances acc. to EN 60654-4Yes; Class 3 (excluding trichlorethylene)
— to chemically active substances according to EN 60721-3-3Yes; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to chemically active substances according to EN 60721-3-6Yes; Class 6C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to biologically active substances according to EN 60721-3-3Yes; Class 3B2 mold, fungus and dry rot spores (with the exception of fauna); Class 3B3 on request
— to biologically active substances according to EN 60721-3-6Yes; Class 6B2 mold and fungal spores (excluding fauna); Class 6B3 on request
— to mechanically active substances according to EN 60721-3-3Yes; Class 3S4 incl. sand, dust, *
— to mechanically active substances according to EN 60721-3-6Yes; Class 6S3 incl. sand, dust; *
— Resistant to commercially available coolants and lubricantsYes; Incl. diesel and oil droplets in the air
— Against mechanical environmental conditions acc. to EN 60721-3-3Yes; Class 3M8 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0)
— Against mechanical environmental conditions acc. to EN 60721-3-6Yes; Class 6M4 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0)
Repeat accuracy in steady state at 25 °C (relative to input range), (+/-)0.1 %
permissible input current for current input (destruction limit), max.50 mA
permissible input voltage for voltage input (destruction limit), max.30 V
— Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04Yes; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) and level LB3 (oil)
— Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04* The supplied plug covers must remain in place over the unused interfaces during operation!
