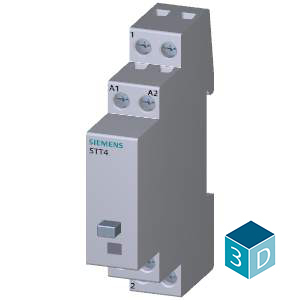

Remote control switch with 2 NO contacts
Part Number: 5TT4102-1
Brand
Category
Latching relay
Siemens 5TT4102-1. Remote control switch with 2 NO contacts, Contact for 230 V AC, 400V 16A Control 115 V AC.
Specifications
Mechanical
Net Weight150 g
Dimensions
Width18 mm
Height90 mm
Depth76 mm
Other
supply voltage400 V
mounting height90 mm
fastening methodDIN rail
mounting positionany
installation depth70 mm
product brand nameSENTRON
degree of pollution2
number of terminals6
product designationRemote control switch
protection class IPIP20, with connected conductors
latching relay designMechanical switch
number of CO contacts0
number of NC contacts0
number of NO contacts2
pulse duration minimum50 ms
number of modular width units1
continuous voltage fuse versionYes
required spacing for live parts6 mm
width of opening of the contacts1.2 mm
surge voltage resistance rated value4 kV
electrical endurance (operating cycles)50 000
type of voltage of the operating voltageAC
product component switch position indicatorYes
switching current at AC per contact minimum100 mA
switching voltage of the contacts at AC minimum10 V
galvanic isolation between magnet coil and contactYes
power loss [V∙A] of magnet coil with pulse rated value7 VA
switching capacity active power with incandescent lamp load2 000 W
ambient temperature with relative humidity 95% according to DIN 5001535 °C
