number of poles1
color of the lenswhite
installation depth70 mm
product brand nameSENTRON

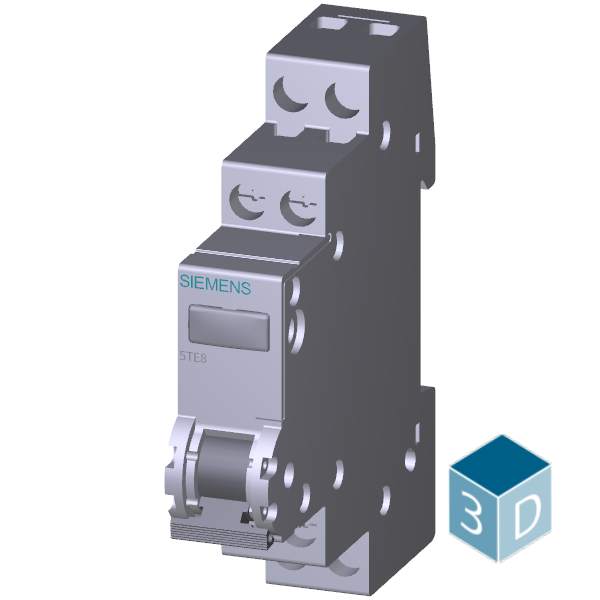

product designationControl switches
protection class IPother
type of light sourceOther
design of the product3 NO
number of NO contacts3
short-circuit current rating10 kA
number of modular width units1
operating voltage rated value400 V
product component signal lampYes
socket design for light sourceOther
operational current rated value20 A
design of the switching functionon-off switch with signal light
switching capacity current rated value0.06 kA
value range of the operating frequency50/60 Hz
type of voltage of the operating voltageAC
ambient temperature during storage minimum-25 °C
product function positive opening (acc. to DIN VDE 0113)No
power loss [W] for rated value of the current at AC in hot operating state per pole0.7 W
