Active

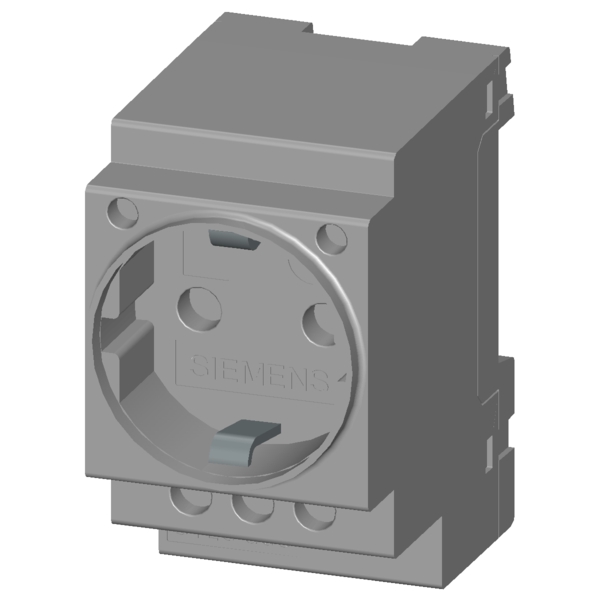

SCHUKO socket outlet 16 A according to DIN VDE 0620 for installation in distribution boards
Part Number: 5TE6800
Brand
Category
Socket outlet for distribution board
Siemens 5TE6800. SCHUKO socket outlet 16 A according to DIN VDE 0620 for installation in distribution boards.
Specifications
Mechanical
Net Weight79 g
Dimensions
Width44 mm
Height58 mm
Depth75 mm
Other
colorgrey
materialThermoplastic
appearanceMatt
mounting typeLatching mounting
stripped length10 mm
fastening methodDIN rail
RAL color number7 035
number of sockets1
installation depth70 mm
product brand nameSENTRON
product designationSCHUKO socket outlet
protection class IPIP20
product type designation5TE6
material of the enclosureplastic
product feature halogen-freeYes
number of modular width units2.5
type of electrical connectionScrew terminal
operational current rated value16 A
arrangement of contacts diagonalNo
supply voltage frequency rated value50 Hz
reference code according to IEC 81346-2XD
design of the special power supply unitWithout special power supply
number of terminals with cross-head screw1
ambient temperature during operation minimum-10 °C
tightening torque with screw-type terminals maximum1.2 N·m
connectable conductor cross-section finely stranded with core end processing minimum0.5 mm²
