Residual Current Monitor digital Type B 4 Channel with Communication Please consider Radio approval! List of countries: see Certifi cates
Part Number: 5SV8223-4MR
Brand
Category
Residual current monitoring relay

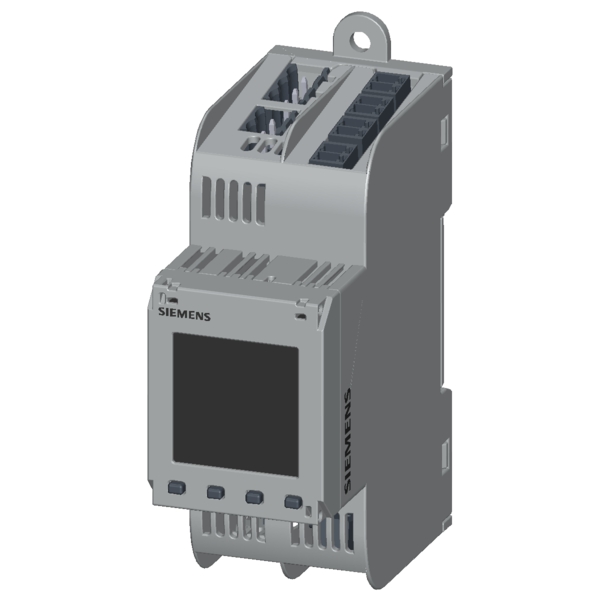

Siemens 5SV8223-4MR. Residual Current Monitor digital Type B 4 Channel with Communication Please consider Radio approval! List of countries: see Certifi cates.
Specifications
Mechanical
Net Weight176 g

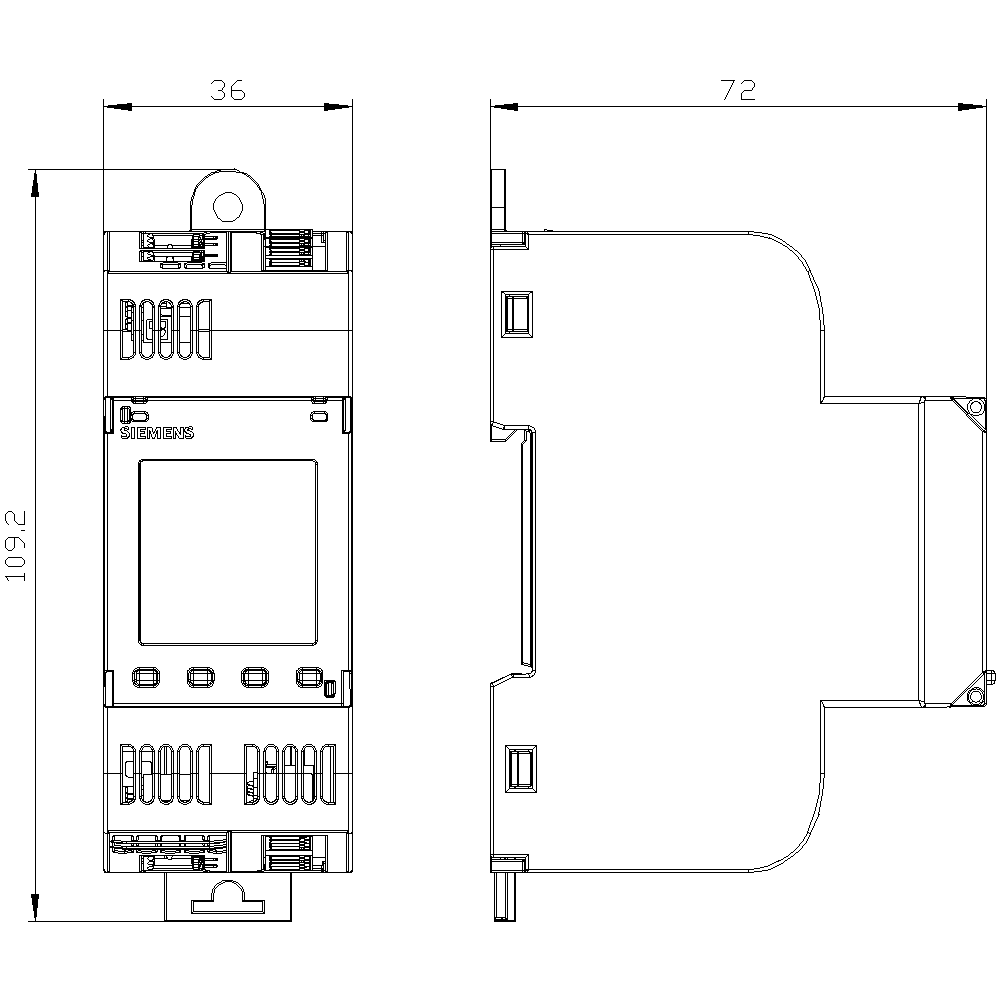

Dimensions
Width36 mm
Height109 mm
Depth72 mm
Other
stripped length7 mm
fastening methodDIN rail
product brand nameSENTRON
degree of pollution2
product designationResidual current monitor with communication
protection class IPIP20
overvoltage categoryIII
design of the productdigital, type B with communication
power loss [V∙A] maximum15 VA
type of electrical connectionscrew terminal
protection class IP on the frontIP30
reference code according to IEC 81346-2K
influence of the surrounding temperatureMax. 95% humidity
number of CO contacts for auxiliary contacts2
protection class IP at connection all terminalsIP20
switching current of relay contacts rated value5 A
switching voltage of relay contacts rated value230 V
wire length to the summation current transformer10 m
type of connectable summation current transformer5SV8711-2KK, 5SV8711-2KP, 5SV8712-2KK, 5SV8712-2KP, 5SV8713-2KK, 5SV8714-2KK
product component removable terminal for main circuitNo
type of voltage of the operating voltage for actuationAC
type of connectable conductor cross-sections for AWG cables for supply voltageAWG 26 ... AWG 14
