auxiliary switch with test button 2 NO
Part Number: 5ST3014-2
Brand
Category
Auxiliary device for distribution board devices
Siemens 5ST3014-2. auxiliary switch with test button 2 NO, low power for miniature circuit breakers 5SL, 5SY, 5SP, incorporated switch 5TL1, RCBO 5SU1 (without 5SU1…FP/FR), RCCB 5SV (for 5SU1, handle coupler 5ST3805-1 is required).
Specifications
Mechanical
Net Weight65 g
Dimensions
Width9 mm
Height90 mm
Depth70 mm
Other
product extensionauxiliary switch
product brand nameSENTRON
product designationauxiliary switches
protection class IPIP20
design of the productMountable
number of CO contacts0
number of NC contacts0

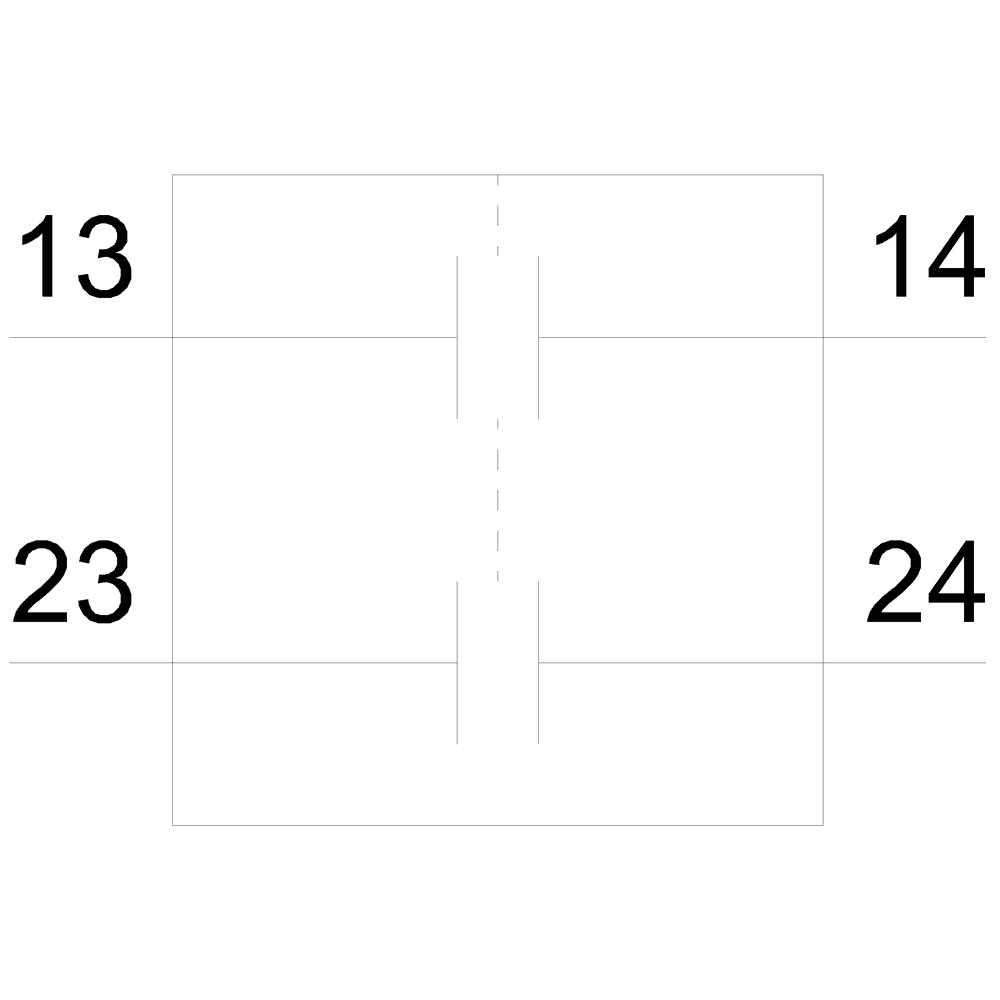

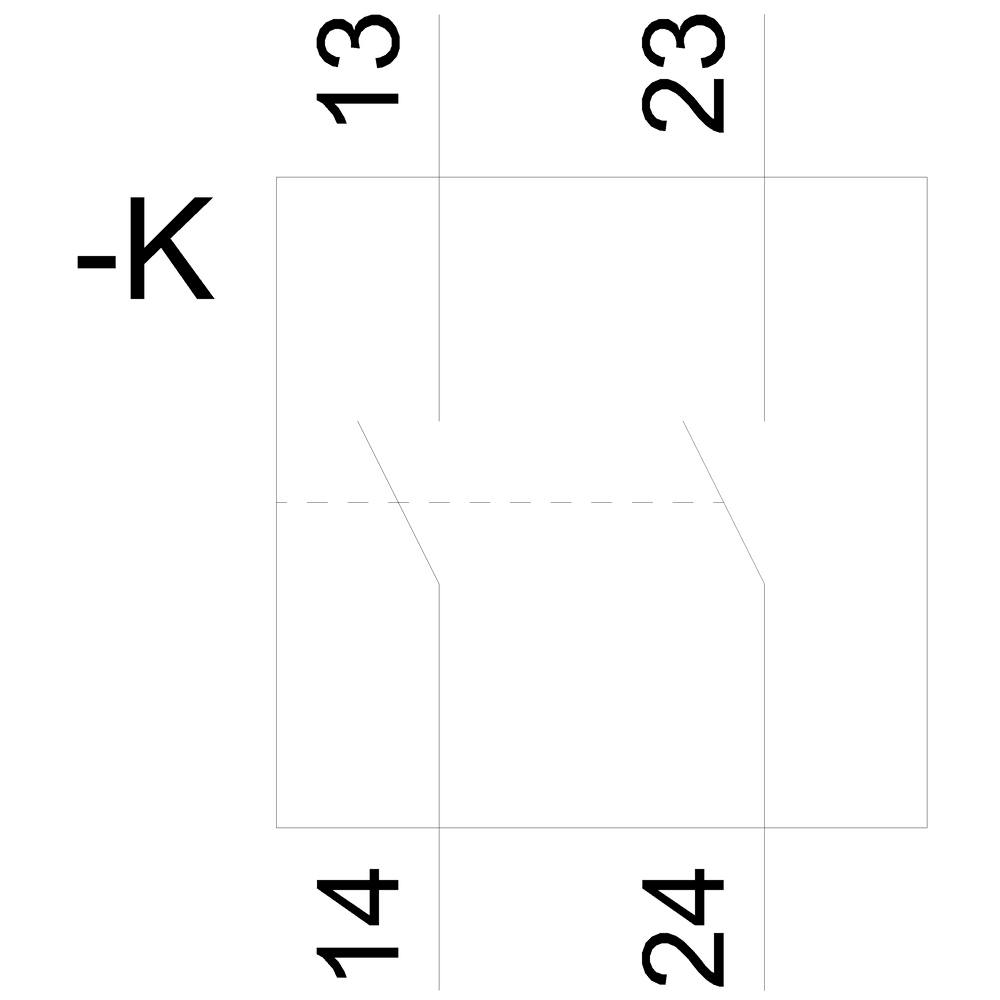

number of NO contacts2
number of modular width units1
insulation voltage rated value50 V
number of fault signal contacts0
product extension can be mountedUniversal
type of voltage of control voltageAC/DC
surge voltage resistance rated value1 kV
design of the product factory mountedNo
operational current at DC rated value0.005 ... 0.05 A
ambient temperature during storage minimum-40 °C
electrical endurance (operating cycles) typical10 000
