Arc fault detection device block AFDD
Part Number: 5SM6024-2
Brand
Category
Miniature circuit breaker (MCB) with auxiliary device

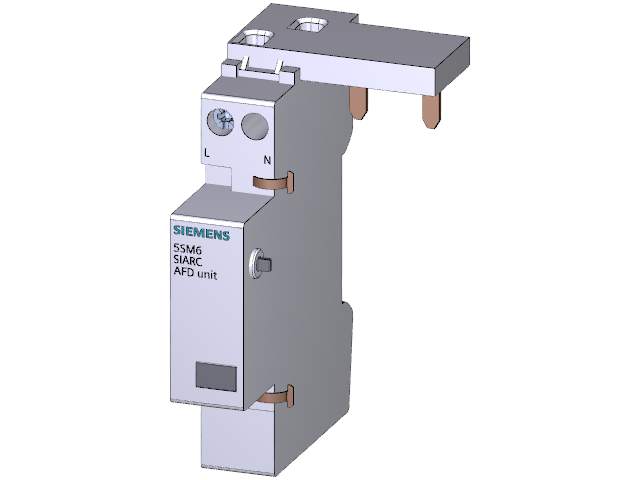

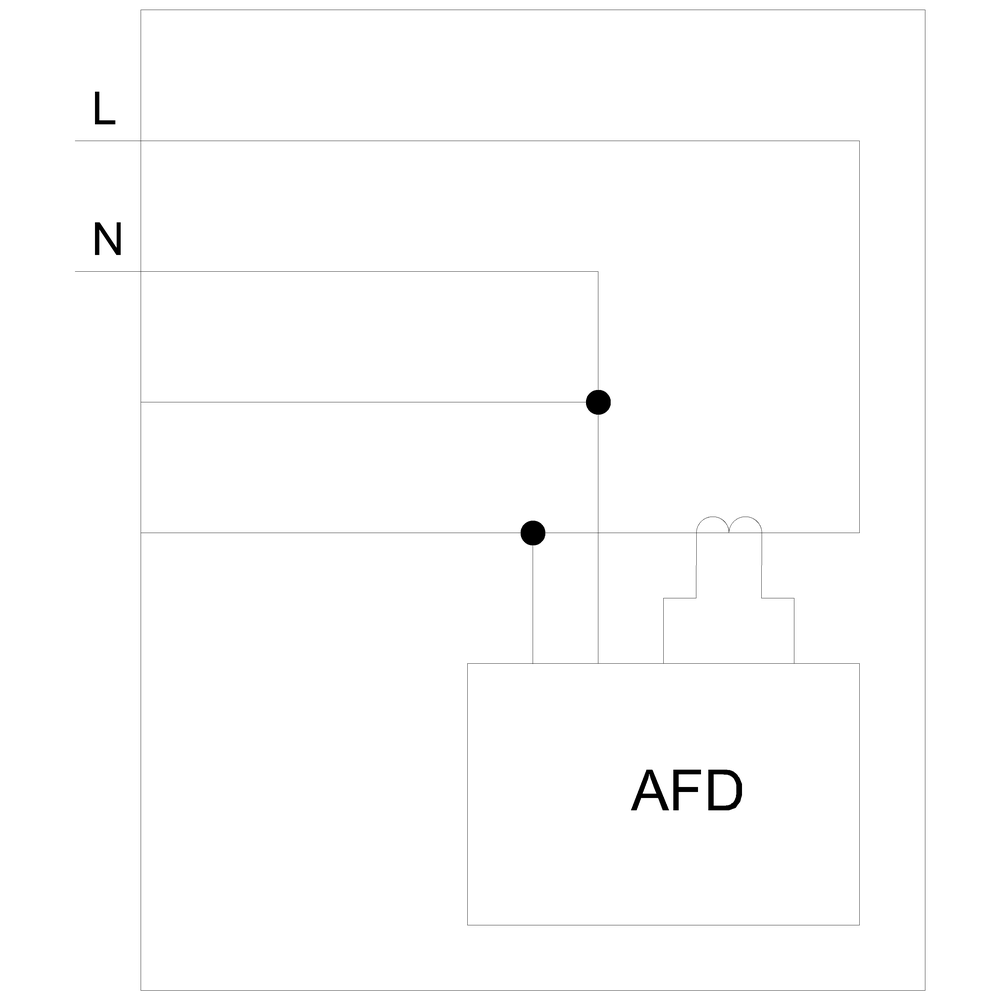

Siemens 5SM6024-2. Arc fault detection device block AFDD, 1-40 A 230 V for CB and RCBO 1+N 2MW.
Specifications
Mechanical
Net Weight103 g
Dimensions
Width54 mm
Height95 mm
Depth68.5 mm
Other
design of pole1P+N
number of poles2
fastening methodDIN rail
mounting positionany
installation depth70 mm
product brand nameSENTRON
degree of pollution2
product designationArc fault detection unit
protection class IPIP20, with connected protective device and conductors
overvoltage category3
design of the productfor MCB 5SY, 5SL4 and RCBO 5SU1
product feature halogen-freeYes
product feature silicon-freeYes
number of modular width units1
position of power supply cordBottom
switching function short-term delayedNo
reference code according to IEC 81346-2F
type of voltage of the operating voltageAC
value range of the supply voltage frequency50Hz
ambient temperature with relative humidity 95%55 °C
mechanical service life (operating cycles) typical10 000
product extension installable supplementary devicesYes
size of installation devices according to DIN 438801
touch protection against electrical shock according to EN 50274finger and back-of-hand safe
number of modular width units of the mountable protective device2
number of test cycles for environmental testing according to IEC 60068-2-3028
