Active
NEOZED
Part Number: 5SG1701
Brand
Category
D0-system fuse base

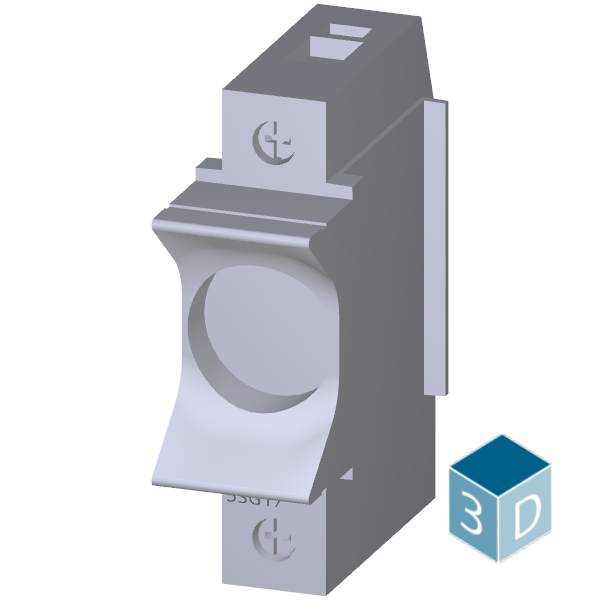

Siemens 5SG1701. NEOZED, fuse base, D02, 1-pole, 63 A, Un AC: 400 V, Un DC: 250 V with twofold frame terminal.
Specifications
Mechanical
Net Weight125 g
Dimensions
Width27 mm
Height83 mm
Depth64 mm
Other
number of poles1
fastening methodDIN rail
product brand nameSENTRON
design of the productNEOZED fuse base installation
material of D fuse baseplastic
product component coverYes
operating voltage rated value400 V
operational current rated value63 A
size of fuse system according to EN 60269-1D02
power loss [W] for rated value of the current at AC in hot operating state per pole1 W
