Active
bell transformer
Part Number: 4AC3208-0
Brand
Category
Bell transformer

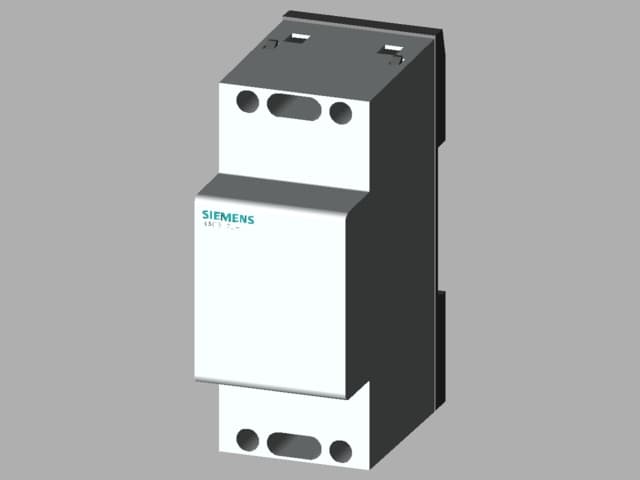

Siemens 4AC3208-0. bell transformer, 8 VA, primary 230-240 V AC, 50 Hz, secondary 8 V AC with PTC fuse, 2MW++.
Specifications
Mechanical
Net Weight261 g

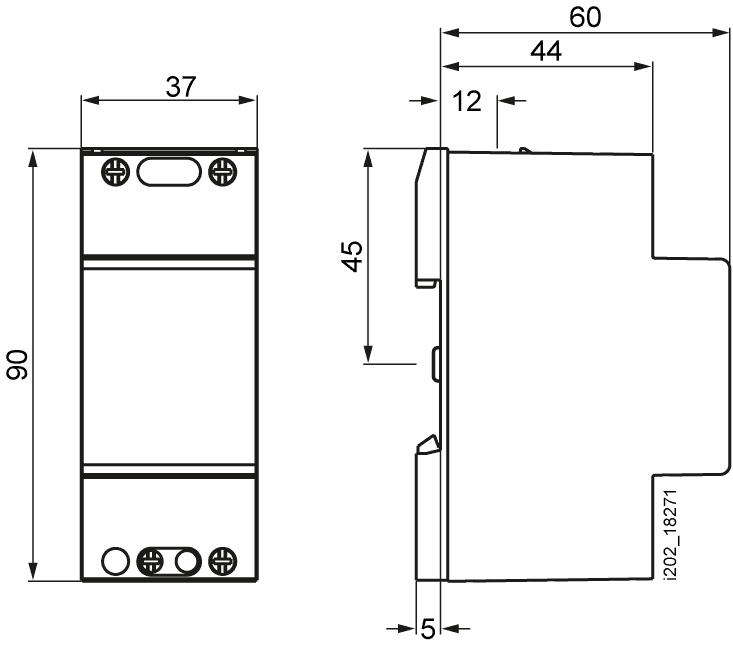

Dimensions
Width36 mm
Height90 mm
Depth64 mm
Other
length90 mm
input voltage230 V
product brand nameSENTRON
product designationBell transformer
product component switchNo
design of the transformerStandard bell transformer
number of modular width units2
supplied active power maximum8 W
product function thermal protectionYes
fastening method side-by-side mountingYes
property of the output short-circuit proofYes
suitability for integration flush mountingNo
suitability for integration surface-mounted installationNo
power loss [W] for rated value of the current at AC in hot operating state per pole6 W
