Active
digital monitoring relay speed monitoring from 0.1 to 2200 r/min overshoot and undershoot supply voltage 24 ... 240 V AC/DC
Part Number: 3UG5651-2CW31
Brand
Category
Speed-/standstill monitoring relay
Siemens 3UG5651-2CW31. digital monitoring relay speed monitoring from 0.1 to 2200 r/min overshoot and undershoot supply voltage 24 ... 240 V AC/DC, 50 .. 60 Hz ON delay and tripping delay 0.1..999.9 s 2 changeover contacts spring-loaded terminal SIL 1/PL c.
Specifications
Mechanical
Net Weight0.18 kg

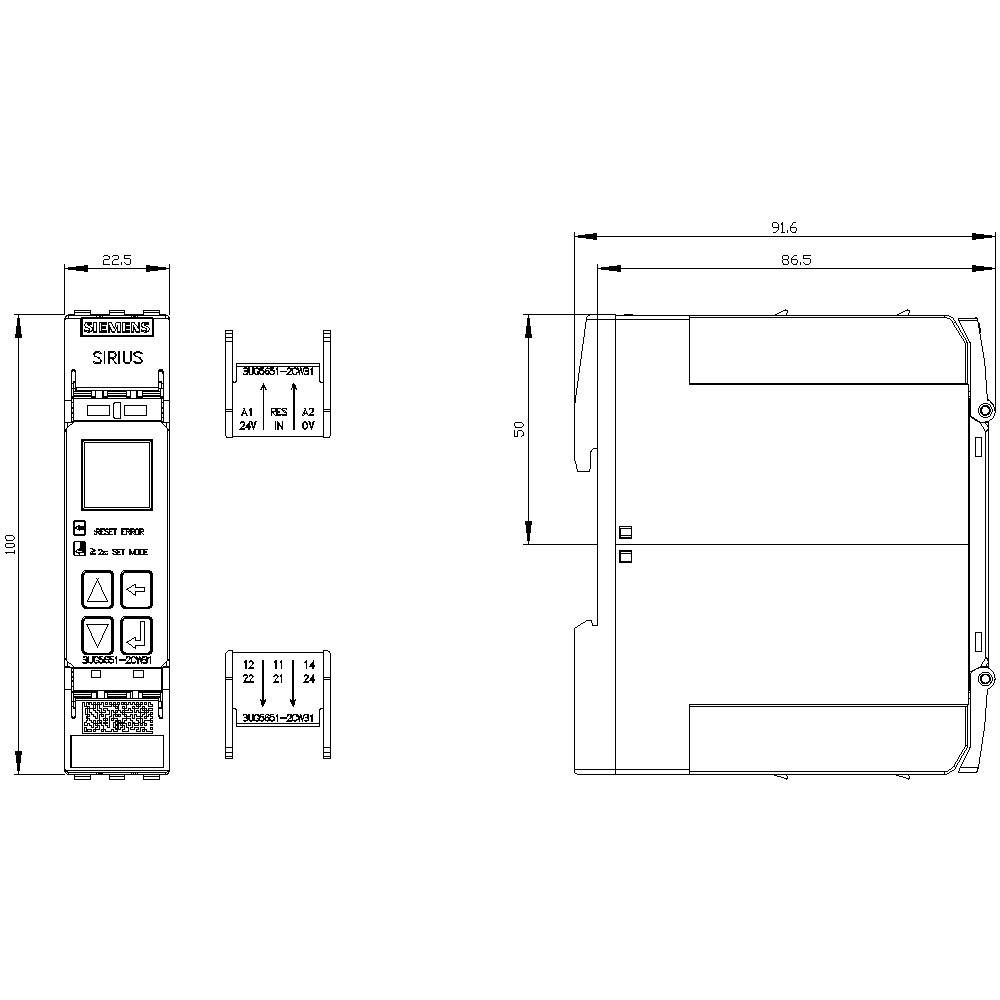

Dimensions
Width22.5 mm
Height100 mm
Depth90 mm
Other
— upwards0 mm
— forwards0 mm
— backwards0 mm
— downwards0 mm
— at the side0 mm
fastening methodscrew and snap-on mounting
product functionRPM monitoring relay
mounting positionany
— delayed switching2
product brand nameSIRIUS
degree of pollution3
product designationSpeed monitoring relay with digital setting
design of the displayLCD
design of the productmonitoring of speed, external power supply with auxiliary voltage for safety applications
— instantaneous contact0
product type designation3UG5
measurable line frequency50 ... 60 Hz
Safe failure fraction (SFF)60 %
accuracy of digital display+/- 1 Digit
Substance Prohibitance (Date)06/01/2023
type of electrical connectionspring-loaded terminal (push-in)
design of input feedback inputNo
function test interval maximum1 a
adjustable operating delay time999.9 s
category according to ISO 13849-12
operational current at 17 V minimum5 mA
protocol is supported IO-Link protocolNo
— with degree of pollution 2 rated value690 V
— with degree of pollution 3 rated value690 V
number of CO contacts delayed switching2
control supply voltage at DC rated value24 ... 240 V
safety device type according to IEC 61508-2Type B
shock resistance according to IEC 60068-2-27sinusoidal half-wave 15g / 11 ms
suitability for use safety-related circuitsYes
performance level (PL) according to ISO 13849-1PL c
product function suitable for safety functionYes
type of voltage of the control supply voltageAC/DC
vibration resistance according to IEC 60068-2-6f = 4 ... 5,81 Hz, dmax = 15 mm; f = 5,81 ... 500 Hz, Amax = 20 m/s²; 10 cycles
hardware fault tolerance according to IEC 615080
T1 value of service life according to IEC 6150820 a
mechanical service life (operating cycles) typical10 000 000
PFHD with high demand rate according to IEC 620611.4E-6 1/h
Safety Integrity Level (SIL) according to IEC 615081
Safety Integrity Level (SIL) according to IEC 62061SIL 1
PFDavg with low demand rate according to IEC 615080.0023
installation altitude at height above sea level maximum2 000 m
electrical endurance (operating cycles) at AC-15 at 230 V typical100 000
thermal current of the switching element with contacts maximum5 A
product component removable terminal for auxiliary and control circuitYes
