— upwards0 mm
— forwards0 mm
— backwards0 mm
— downwards0 mm
— at the side0 mm
fastening methodscrew and snap-on mounting
product functionnetwork monitoring relay with digital setting
mounting positionany
measurable current0.05 ... 10 A
product brand nameSIRIUS
degree of pollution3

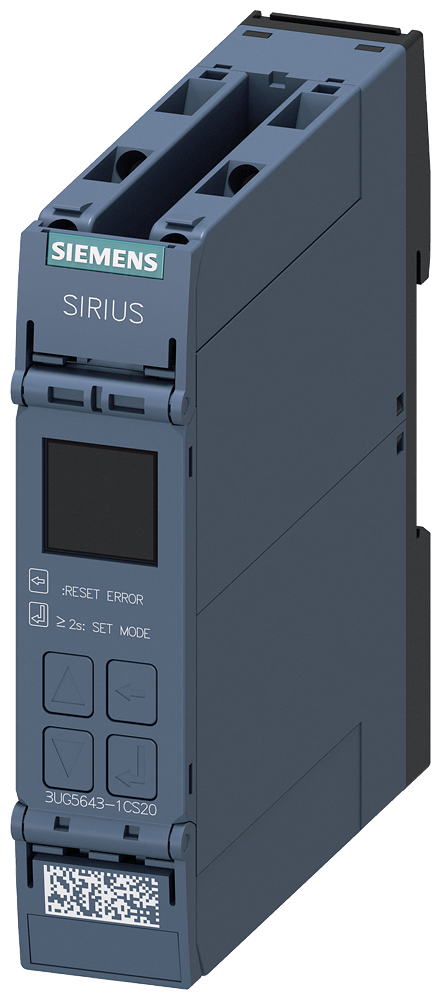

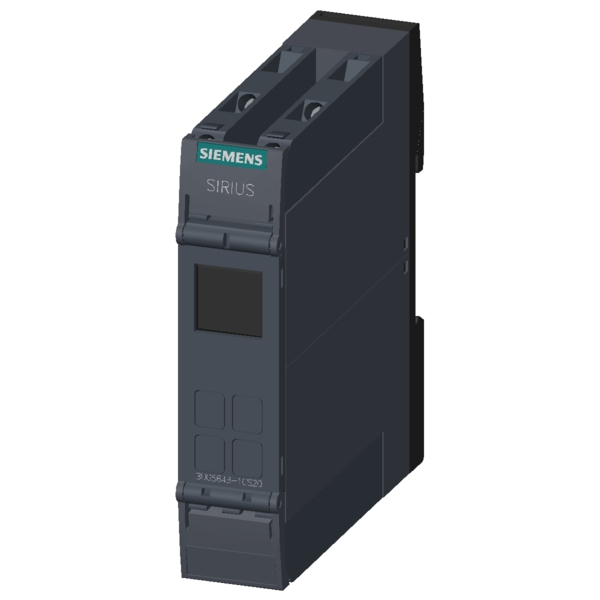

product designationNetwork monitoring relay with digital setting
design of the displayLCD
design of the productmonitoring of current, active current, voltage, power factor and power, internally powered without auxiliary voltage
measurable voltage at AC76 ... 760 V
product type designation3UG5
accuracy of digital display+/-1 digit
Substance Prohibitance (Date)06/01/2023
operating voltage rated value90 ... 690 V
type of electrical connectionscrew terminal
type of current for monitoringAC/DC
control supply voltage rated value90 ... 690 V
operational current at 17 V minimum5 mA
supply voltage frequency rated value70 ... 15 Hz
surge voltage resistance rated value6 kV
protocol is supported IO-Link protocolNo
reference code according to IEC 81346-2K

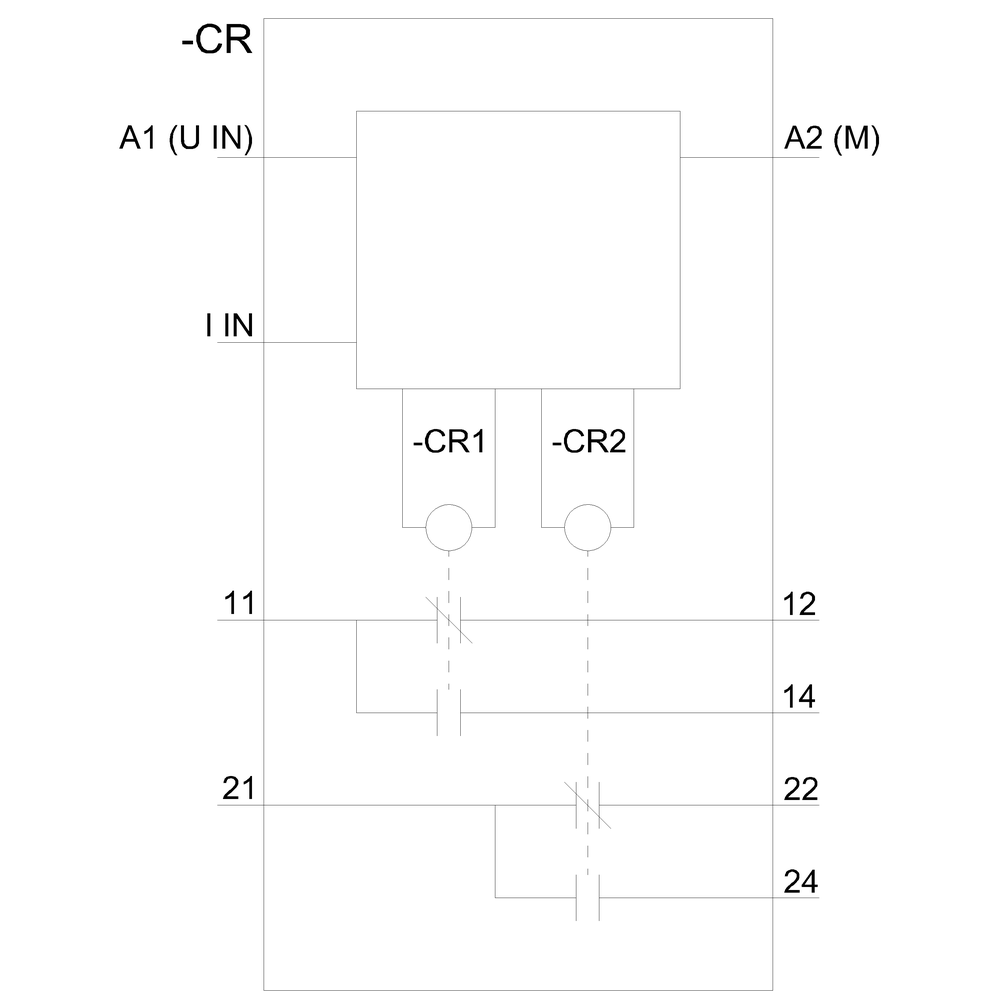

number of CO contacts delayed switching2
number of NC contacts delayed switching0
number of NO contacts delayed switching0
control supply voltage at DC rated value90 ... 690 V
number of poles for main current circuit1
shock resistance according to IEC 60068-2-27sinusoidal half-wave 15g / 11 ms
tightening torque with screw-type terminals0.6 ... 0.8 N·m
type of voltage of the control supply voltageAC
vibration resistance according to IEC 60068-2-6f = 4 ... 5,81 Hz, dmax = 15 mm; f = 5,81 ... 500 Hz, Amax = 20 m/s²; 10 cycles
mechanical service life (operating cycles) typical10 000 000
installation altitude at height above sea level maximum2 000 m
adjustable current response value current limited to 5 s15 A
adjustable switching hysteresis for measured current value0 ... 5 000 mA
continuous current of the DIAZED fuse link of the output relay6 A
electrical endurance (operating cycles) at AC-15 at 230 V typical100 000
thermal current of the switching element with contacts maximum5 A
product component removable terminal for auxiliary and control circuitYes
supply voltage frequency for auxiliary and control circuit rated value50 ... 60 Hz
