— upwards0 mm
— forwards0 mm
— backwards0 mm
— downwards0 mm
— at the side0 mm
fastening methodsnap-on fastening on 35 mm DIN rail
product functionInsulation monitor
mounting positionany

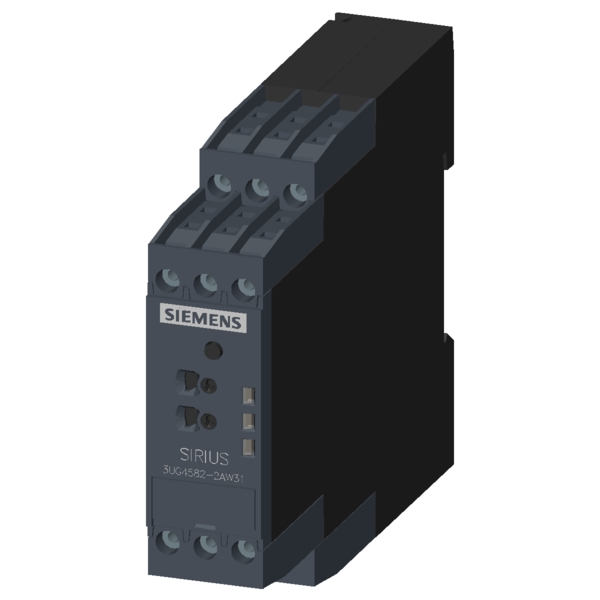

product brand nameSIRIUS
product designationInsulation monitoring relay with analog setting
measurable voltage at AC0 ... 250 V
measurable voltage at DC0 ... 300 V
product type designation3UG4
measurable line frequency15 ... 400 Hz
Substance Prohibitance (Date)05/01/2012
type of electrical connectionspring-loaded terminal (push-in)
operating frequency rated value15 ... 400 Hz
ambient temperature during operation-25 ... +60 °C
surge voltage resistance rated value6 000 V
reference code according to IEC 81346-2K
number of NC contacts delayed switching0
number of NO contacts delayed switching0
control supply voltage at DC rated value24 ... 240 V
number of NC contacts for auxiliary contacts0
number of NO contacts for auxiliary contacts0
protection class IP on the front according to IEC 60529IP20
thermal current of the switching element with contacts maximum4 A
product component removable terminal for auxiliary and control circuitNo
