— upwards0 mm
— forwards0 mm
— backwards0 mm
— downwards0 mm
— at the side0 mm
fastening methodsnap-on mounting

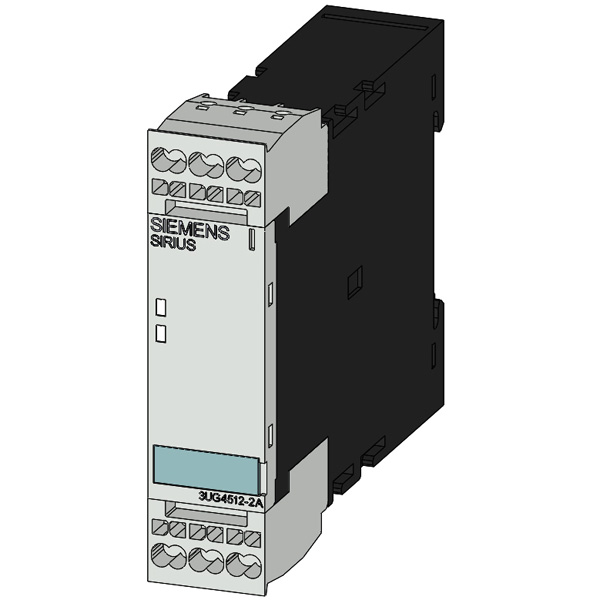

product functionPhase monitoring relay
mounting positionany
product brand nameSIRIUS
degree of pollution3
display version LEDYes
product designationLine monitoring relay
design of the product2 functions
response time maximum450 ms
product type designation3UG4
relative repeat accuracy1 %
Substance Prohibitance (Date)05/01/2012
type of electrical connectionspring-loaded terminals
operational current at 17 V minimum5 mA
surge voltage resistance rated value6 kV
reference code according to IEC 81346-2K
number of NC contacts delayed switching0
number of NO contacts delayed switching0
number of poles for main current circuit3
shock resistance according to IEC 60068-2-27sinusoidal half-wave 15g / 11 ms
type of voltage of the control supply voltageAC
vibration resistance according to IEC 60068-2-61 ... 6 Hz: 15 mm, 6 ... 500 Hz: 2g
operating frequency with 3RT2 contactor maximum5 000 1/h
electrostatic discharge according to IEC 61000-4-26 kV contact discharge / 8 kV air discharge
field-based interference according to IEC 61000-4-310 V/m
mechanical service life (operating cycles) typical10 000 000
installation altitude at height above sea level maximum2 000 m
protection class IP on the front according to IEC 60529IP20
continuous current of the DIAZED fuse link of the output relay4 A
electrical endurance (operating cycles) at AC-15 at 230 V typical100 000
thermal current of the switching element with contacts maximum5 A
product component removable terminal for auxiliary and control circuitYes
