Active
Operator panel titanium gray
Part Number: 3UF7200-1AA01-0
Brand
Category
Operator panel for Motor management device

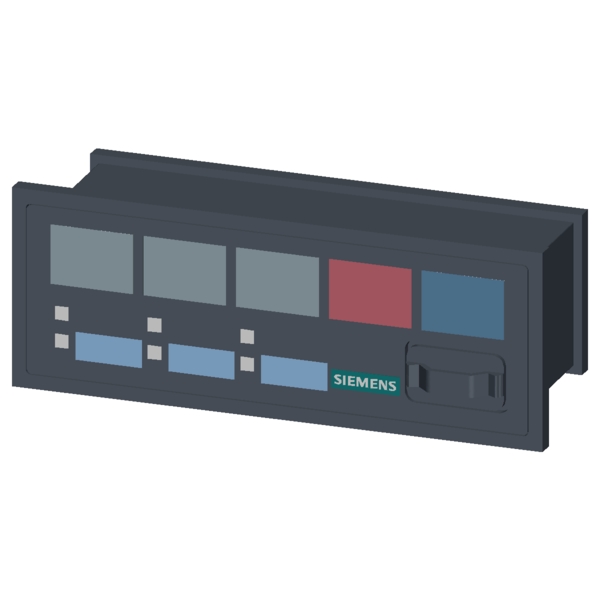

Siemens 3UF7200-1AA01-0. Operator panel titanium gray, installation in control cabinet door or front plate, can be plugged onto basic unit or extension modules, 10 LEDs for status display and 5 freely assignable keys for manual control.
Specifications
Mechanical
Net Weight0.086 kg
Dimensions
Width96 mm
Height36 mm
Depth44 mm
Other
colortitanium grey
fastening methodfront plate mounting
mounting positionvertical
product brand nameSIMOCODE
product designationoperator panels
vibration resistance1-6 Hz / 15 mm; 6-500 Hz / 2 g
consumed active power0.1 W
product type designationBB
certificate of suitabilityCE / UL / CSA / CCC / C-Tick (RCM) / GOST / NOM / ABS / DNV / GL / LRS / RoHS
Substance Prohibitance (Date)07/01/2006
protection class IP on the frontIP54
EMC immunity according to IEC 60947-1corresponds to degree of severity 3
surge voltage resistance rated value4 000 V
reference code according to IEC 81346-2A
EMC emitted interference according to IEC 60947-1class A
field-based interference according to IEC 61000-4-310 V/m
