Part Number: 3SU1500-1AA10-1PA0
Brand
Category
Adapter for command devices

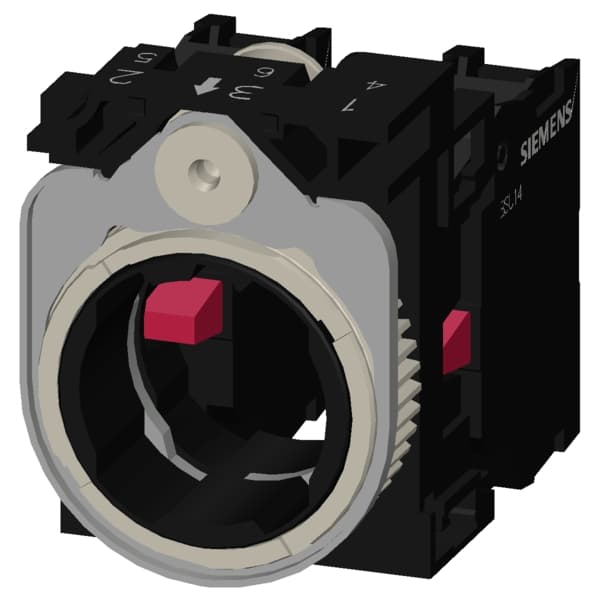

Siemens 3SU1500-1AA10-1PA0. holder, 3-way, plastic, 1 NC, 1 NC, screw terminal.
Specifications
Mechanical
Net Weight40 g

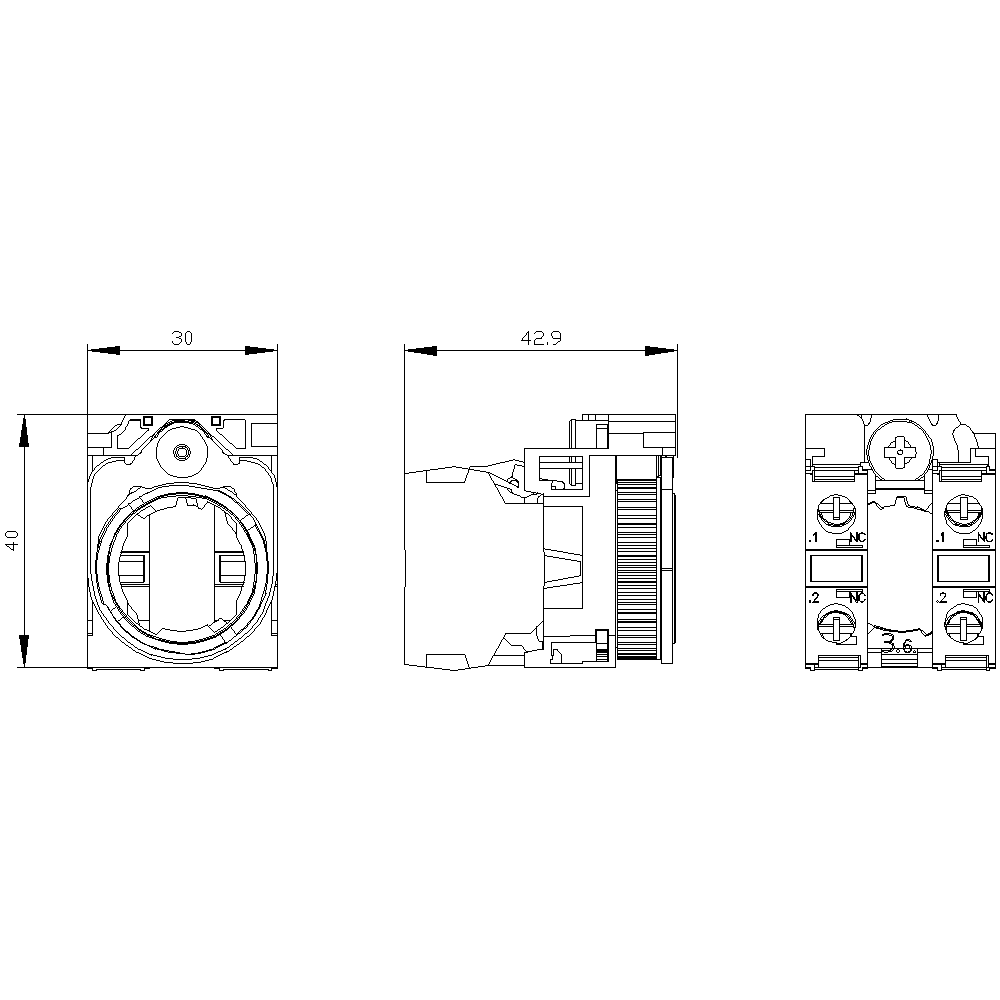

Dimensions
Width30 mm
Height40 mm
Other
thermal current10 A
fastening methodfront plate mounting
installation depth49.8 mm
installation width30 mm
product brand nameSIRIUS ACT
contact reliabilityOne maloperation per 100 million (17 V, 5 mA), one maloperation per 10 million (5 V, 1 mA)
degree of pollution3
product designationHolders
— at 50 Hz rated value5 ... 500 V
— at 60 Hz rated value5 ... 500 V
design of the productholder for plastic
number of LED modules0
material of the holderPlastic
product type designation3SU1
number of contact modules2
operating frequency maximum3 600 1/h
Substance Prohibitance (Date)10/01/2014
insulation voltage rated value500 V
design of the actuating element3-way with module
product function positive openingYes
shape of the installation openinground
protection class IP of the terminalIP20
thickness of the front plate usable1 ... 6 mm
surge voltage resistance rated value6 kV
reference code according to IEC 81346-2U
design of the contact of auxiliary contactsSilver alloy

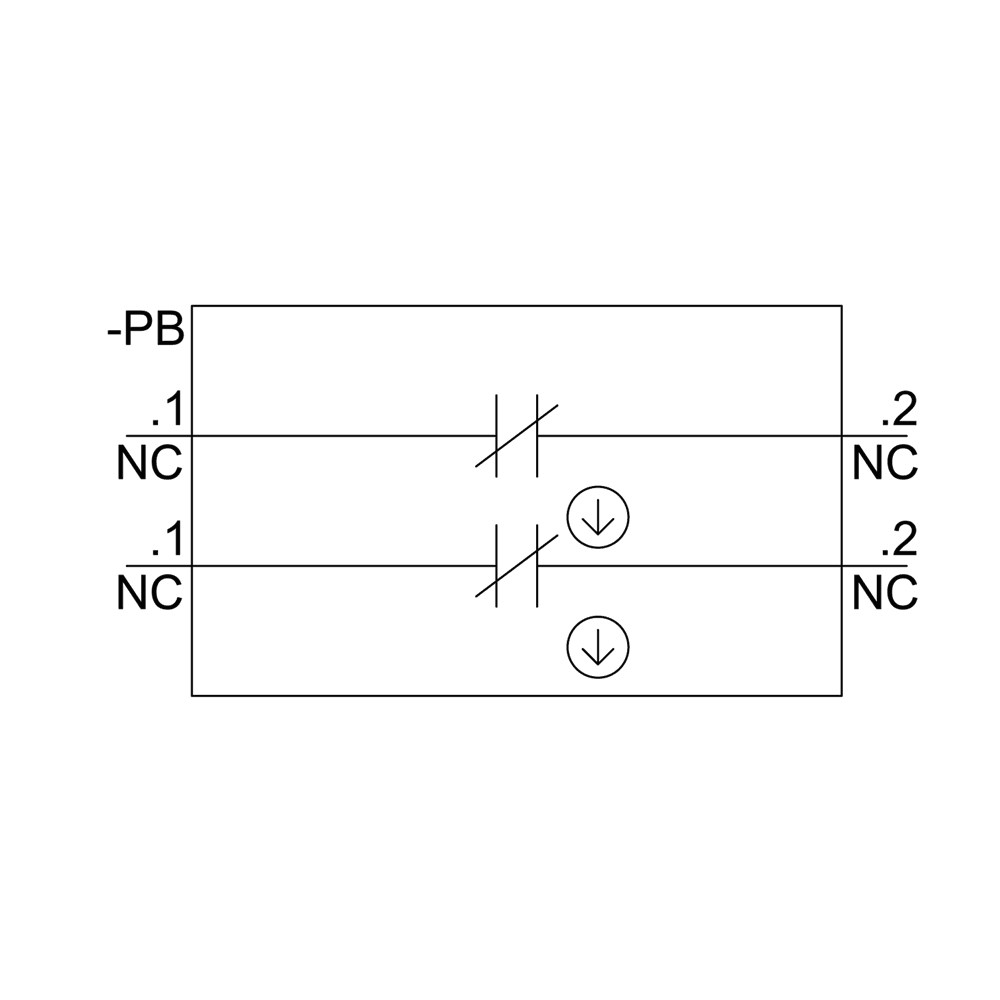

number of NC contacts for auxiliary contacts2
number of NO contacts for auxiliary contacts0
continuous current of the DIAZED fuse link gG10 A
continuous current of the C characteristic MCB10 A; for a short-circuit current smaller than 400 A
tightening torque of the screws in the bracket1 ... 1.2 N·m
continuous current of the quick DIAZED fuse link10 A
mechanical service life (operating cycles) typical10 000 000
operational current at AC-15 at 230 V rated value6 A
environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95%, no condensation in operation permitted)
