product linePlastic, black, 22 mm
light intensity450 ... 1 120 mcd

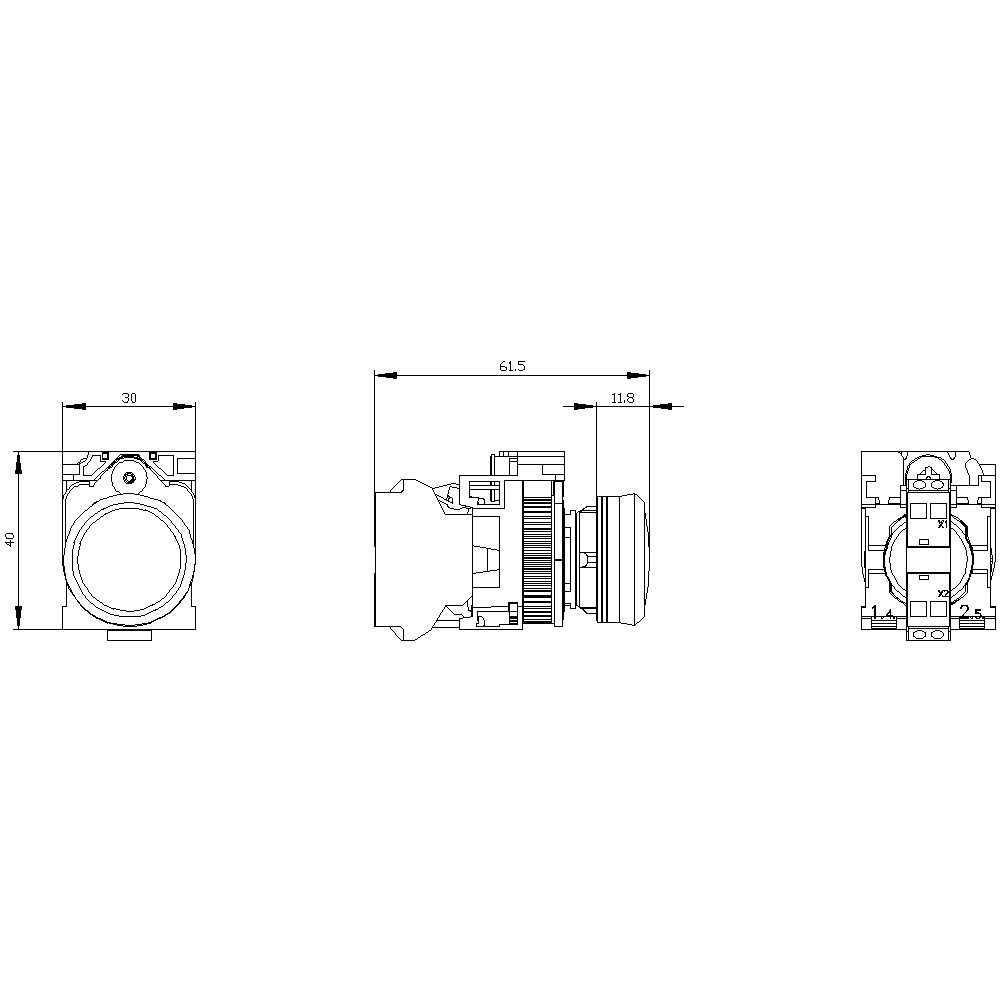

mounting height11.8 mm
fastening methodfront plate mounting
mounting diameter22.3 mm
installation depth49.7 mm
installation width29.5 mm
product brand nameSIRIUS ACT
degree of pollution3

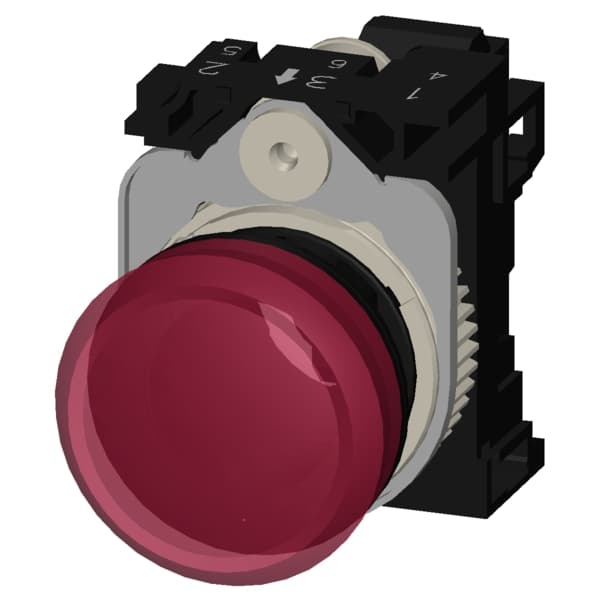

product designationIndicator lights
protection class IPIP66, IP67, IP69(IP69K)
type of light sourceLED
design of the productComplete unit
number of LED modules1
inrush current maximum2 A
material of the holderPlastic
number of command points1
product type designation3SU1
color of the light sourcered
Substance Prohibitance (Date)10/01/2014
product component front ringNo
type of electrical connectionother
insulation voltage rated value320 V
product component light sourceYes
shape of the actuating elementround
degree of protection NEMA rating1, 2, 3, 3R, 4, 4X, 12, 13
material of the actuating elementplastic
shape of the installation openinground
protection class IP of the terminalIP20
surge voltage resistance rated value4 kV
reference code according to IEC 81346-2P
outer diameter of the actuating element29.45 mm
product extension optional light sourceYes
positive tolerance of installation diameter0.4 mm
tightening torque of the screws in the bracket1 ... 1.2 N·m
relative negative tolerance of the supply voltage30 %
relative positive tolerance of the supply voltage25 %
type of voltage of the supply voltage of the light sourceAC/DC
environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3K6 (with relative air humidity of 10 ... 95%, no condensation in operation permitted for all devices behind front panel)
