cable-operated switch metal enclosure
Part Number: 3SE7150-2DD04
Brand
Category
Emergency stop pull cord switch
Siemens 3SE7150-2DD04. cable-operated switch metal enclosure, 2 xM20 x1.5; 1 NO+1 NC, without latching with LED lamp red, 24 V DC, for wire lengths up to 20 m.
Specifications
Mechanical
Net Weight0.449 kg

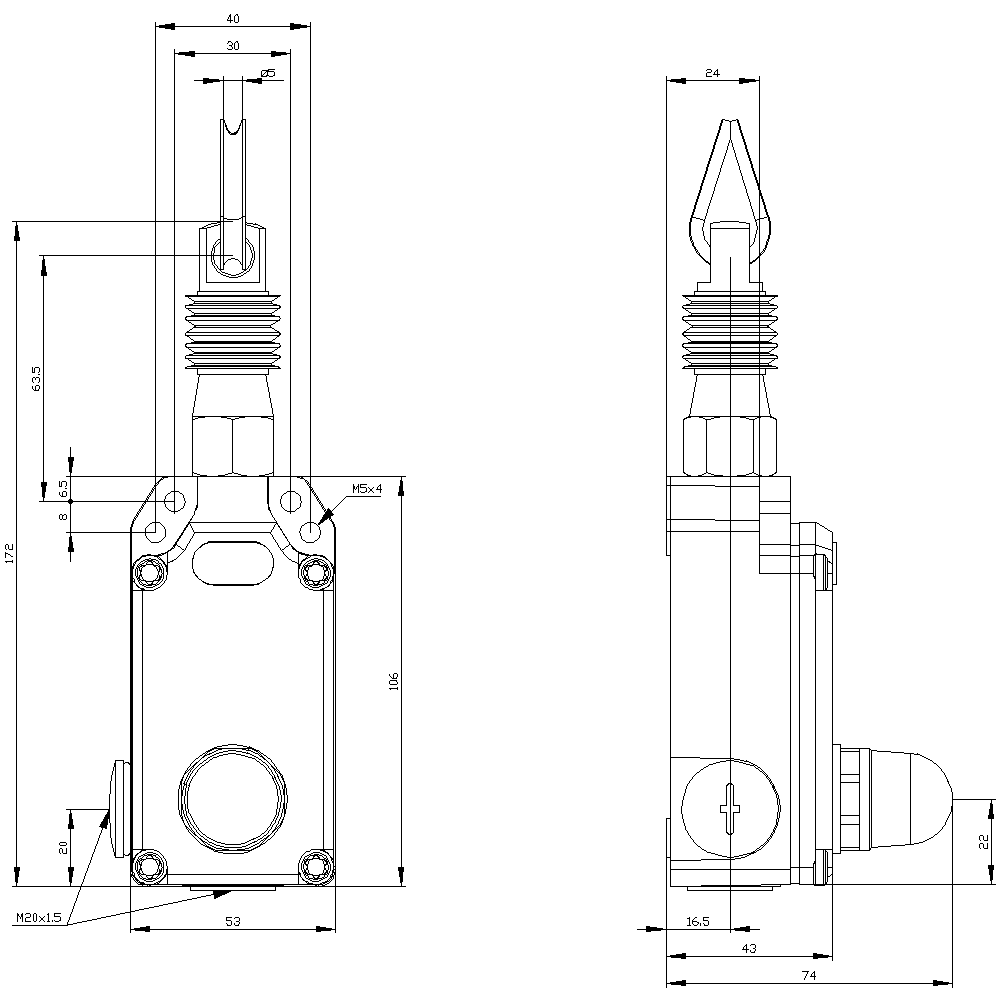

Dimensions
Width52 mm
Height171 mm
Depth74 mm
Other
thermal current6 A
cable entry type2x M20 x 1,5
fastening methodscrew fixing
circuit principleJump function
product brand nameSIRIUS
degree of pollutionclass 3
product designationcable-operated switch
protection class IPIP65
material of the contactSilver
coating of the enclosurepainted
product type designation3SE7
color of the light sourcered
material of the enclosuremetal
Substance Prohibitance (Date)07/01/2006
type of electrical connectionscrew terminal
insulation voltage rated value400 V
product component light sourceYes
material of the enclosure coverPlastic
product function status displayYes
ambient temperature during operation-25 ... +70 °C
surge voltage resistance rated value6 kV
reference code according to IEC 81346-2S
product component EMERGENCY STOP deviceNo
product function EMERGENCY STOP functionNo
number of switching contacts safety-related1
number of NC contacts for auxiliary contacts1
number of NO contacts for auxiliary contacts1
continuous current of the DIAZED fuse link gG6 A
mechanical service life (operating cycles) typical1 000 000
relative negative tolerance of the supply voltage-15 %
relative positive tolerance of the supply voltage10 %
B10 value with high demand rate according to SN 31920100 000
supply voltage 1 of the light source at DC rated value24 V
type of voltage of the supply voltage of the light sourceDC
proportion of dangerous failures with high demand rate according to SN 3192050 %
