active principlemechanical
fastening methodscrew fixing
mounting positionany
product brand nameSIRIUS
product designationactuator for part-turn actuator
design of the interfacewithout
coating of the enclosureOther types
product type designation3SE5
shape of the switch headroller
Substance Prohibitance (Date)07/01/2006

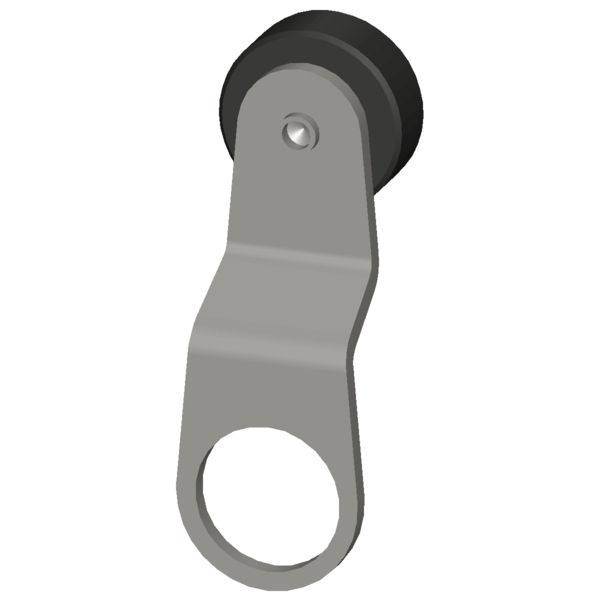

design of the actuating elementTwist lever, high-grade steel lever, 35 mm long, step 9 mm, plastic roller 19 mm
standard-compliant actuator headEN 50041, design A
outer diameter of the switch head19 mm
product function positive openingYes
explosion protection category for dustnone
reference code according to IEC 81346-2T
mechanical service life (operating cycles) typical15 000 000
design of the interface for safety-related communicationwithout
