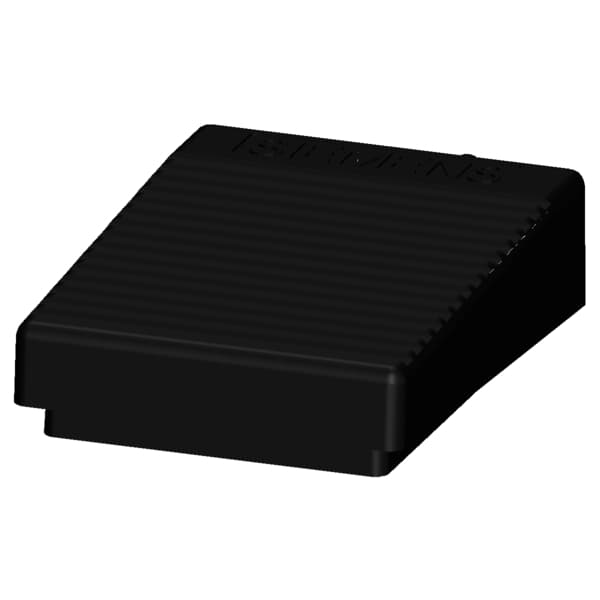

Foot switch molded-plastic enclosure Pedal switch 1-pedal without cover
Part Number: 3SE3902-4CB20
Brand
Category
Foot switch
Siemens 3SE3902-4CB20. Foot switch molded-plastic enclosure Pedal switch 1-pedal without cover, 1 change-over contact.
Specifications
Mechanical
Net Weight0.371 kg

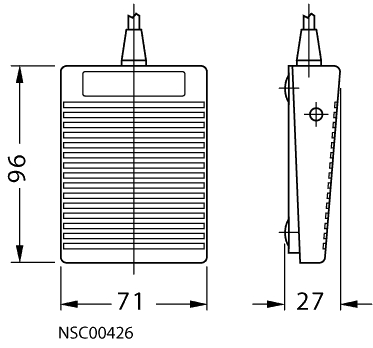

Dimensions
Width71 mm
Height96 mm
Depth27 mm
Other
cable entry typecable, 3 m
fastening methodscrew fixing
product brand nameSIRIUS
product designationmomentary-contact foot switch
protection class IPIP65
product type designation3SE39
material of the enclosureplastic with total insulation
number of switching steps1
Substance Prohibitance (Date)07/01/2006
number of the actuation pedals1
suitability for use safety switchNo
ambient temperature during operation-10 ... +75 °C
reference code according to IEC 81346-2S
number of NC contacts for auxiliary contacts0
number of NO contacts for auxiliary contacts0
mechanical service life (operating cycles) typical1 000 000
operational current at AC-15 at 230 V rated value5 A
