Active
Foot switch
Part Number: 3SE2912-2AB20
Brand
Category
Foot switch

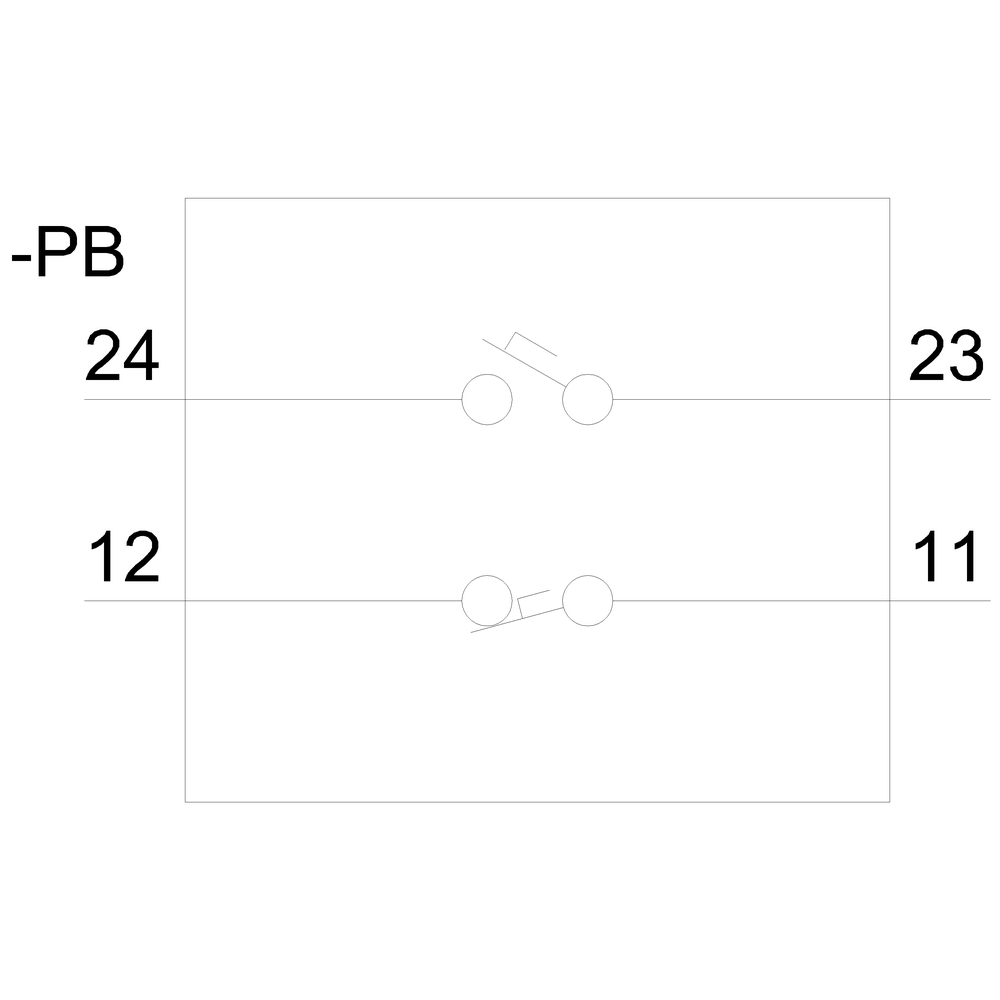

Siemens 3SE2912-2AB20. Foot switch, 1-pedal without cover, with latching Metal enclosure IP65, 1 NO+1 NC, Cable entry M20 x 1.5.
Specifications
Mechanical
Net Weight0.685 kg
Dimensions
Width70 mm
Height70 mm
Depth220 mm
Other
cable entry typeM20 x 1.5
product brand nameSIRIUS
product designationfoot switch
protection class IPIP65
product type designation3SE29
material of the enclosuremetal
number of switching steps1
Substance Prohibitance (Date)07/01/2006
number of the actuation pedals1
suitability for use safety switchNo
ambient temperature during operation-25 ... +80 °C
reference code according to IEC 81346-2S
number of NC contacts for auxiliary contacts1
number of NO contacts for auxiliary contacts1
mechanical service life (operating cycles) typical1 000 000
minimum actuating force in directions of actuation30 N
B10 value with high demand rate according to SN 31920100 000
failure rate [FIT] with low demand rate according to SN 31920100 FIT
T1 value for proof test interval or service life according to IEC 6150820 a
