thermal current10 A
active principlemechanical
cable entry type3x (M16 x 1.5)
fastening methodscrew fixing
circuit principleslow-action contacts
mounting positionany
product brand nameSIRIUS

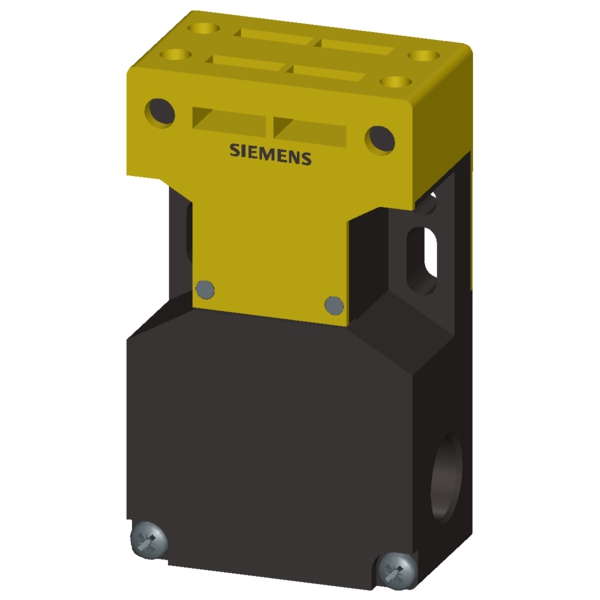

product designationsafety position switch
protection class IPIP67
width of the sensor52 mm
length of the sensor90 mm
design of the housingwide
design of the interfacewithout
coating of the enclosureOther types
product type designation3SE22
material of the enclosureglass fiber reinforced thermoplast
Substance Prohibitance (Date)07/01/2006
type of electrical connectionscrew terminal
insulation voltage rated value500 V
design of the actuating elementwithout
design of the switching contactmechanical
operating frequency rated value60 ... 50 Hz
design of the switching functionpositive opening
suitability for use safety switchYes
surge voltage resistance rated value6 kV
explosion protection category for dustnone
reference code according to IEC 81346-2B
number of switching contacts safety-related2
design of the housing according to standardNo
number of NC contacts for auxiliary contacts2
number of NO contacts for auxiliary contacts1
mechanical service life (operating cycles) typical1 000 000
design of the interface for safety-related communicationwithout
