— solid2x (0.5 ... 1.5 mm²)
fastening methodplug-in fixing
product categoryAuxiliary switch
product brand nameSIRIUS
degree of pollution3
display version LEDNo
product designationsignaling switch

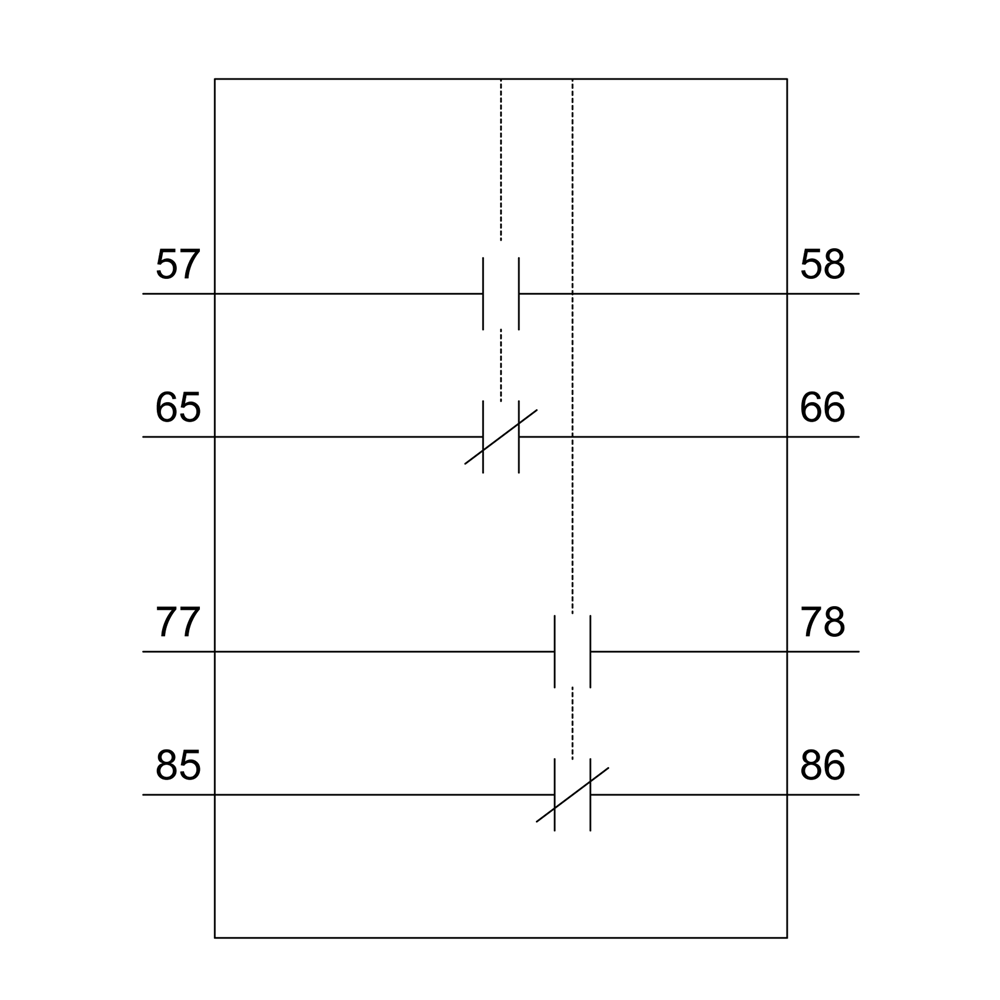

design of the productseparate tripped signal and short circuit alarm, 1 NO + 1 NC each
product type designation3RV29
certificate of suitabilityCE / UL / CSA / CCC
size of the circuit-breakerS00, S0, S2, S3
Substance Prohibitance (Date)10/01/2009
insulation voltage rated value690 V
surge voltage resistance rated value6 kV
reference code according to IEC 81346-2Q
— finely stranded with core end processing2x (0.5 ... 1.5 mm²)
operational current at AC-15 at 690 V rated value1 A
touch protection on the front according to IEC 60529finger-safe, for vertical contact from the front
protection class IP on the front according to IEC 60529IP20
operational current of auxiliary contacts at AC-12 maximum10 A
type of electrical connection for auxiliary and control circuitspring-loaded terminals
number of CO contacts of auxiliary contacts instantaneous contact0
number of NC contacts for auxiliary contacts instantaneous contact1
number of NO contacts for auxiliary contacts instantaneous contact1
AWG number as coded connectable conductor cross section for auxiliary contacts20 ... 14
