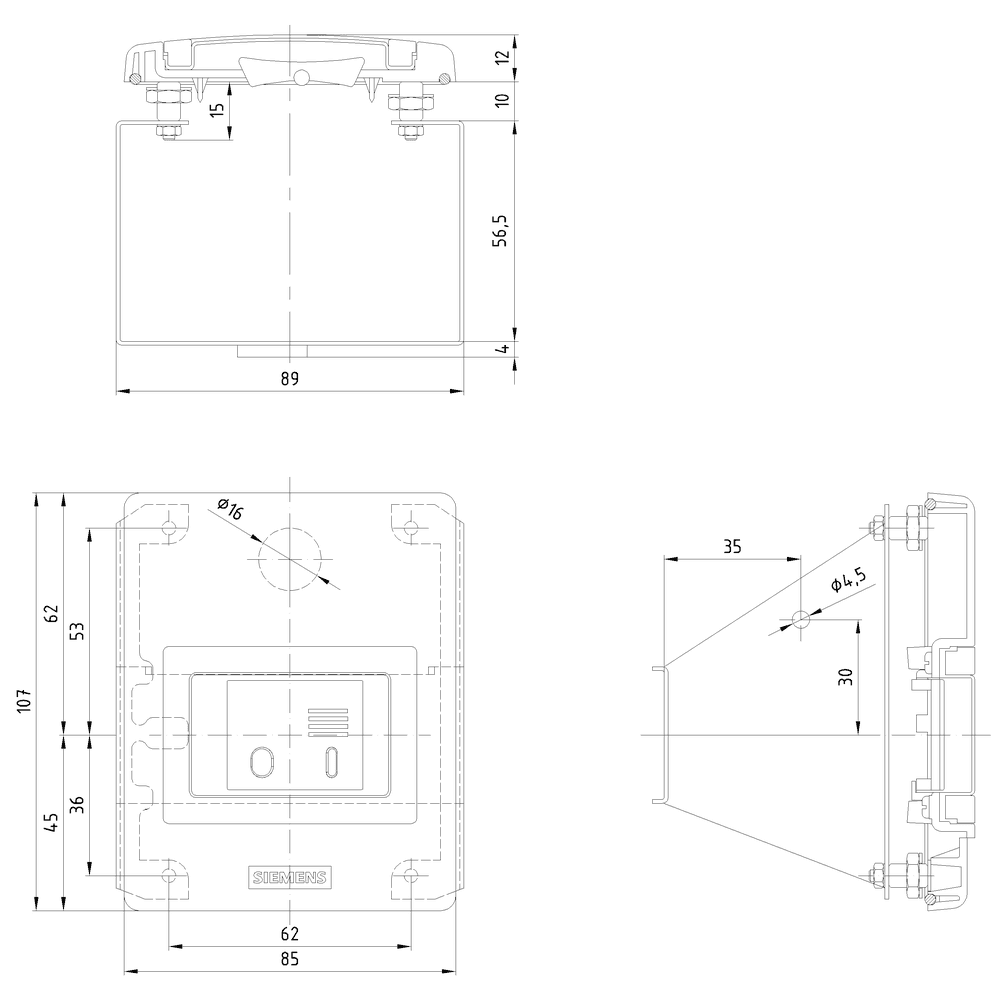

Name: Molded plastic front plate Degree of protection IP55 with actuator diaphragm and holder for circuit breaker Size S00
Brand: Siemens
SKU: 3RV1913-4C
Availability: InStock

Specifications

Mechanical

Net Weight0.21 kg

Dimensions

Width85 mm

Height107 mm

Depth12 mm

Other

product categoryEnclosure

product brand nameSIRIUS

product designationMolded-plastic front plate

design of the productInstallation

product type designation3RV19

material of the enclosureplastic

Substance Prohibitance (Date)07/01/2006

protection class IP of the enclosureIP55

product function EMERGENCY OFF functionNo

Downloads

3RV1913-4C_doc_0 3RV1913-4C_doc_1 3RV1913-4C_doc_2 3RV1913-4C_datasheet.pdf
