Active
capacitor contactor
Part Number: 3RT2617-1BB43
Brand
Category
Capacitor contactor

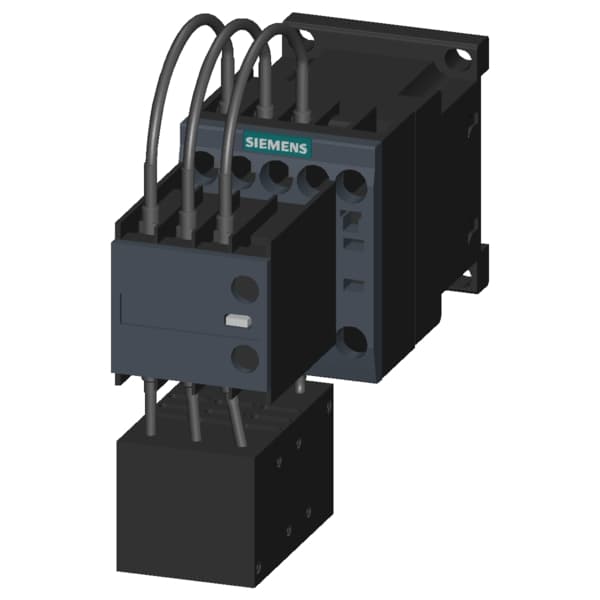

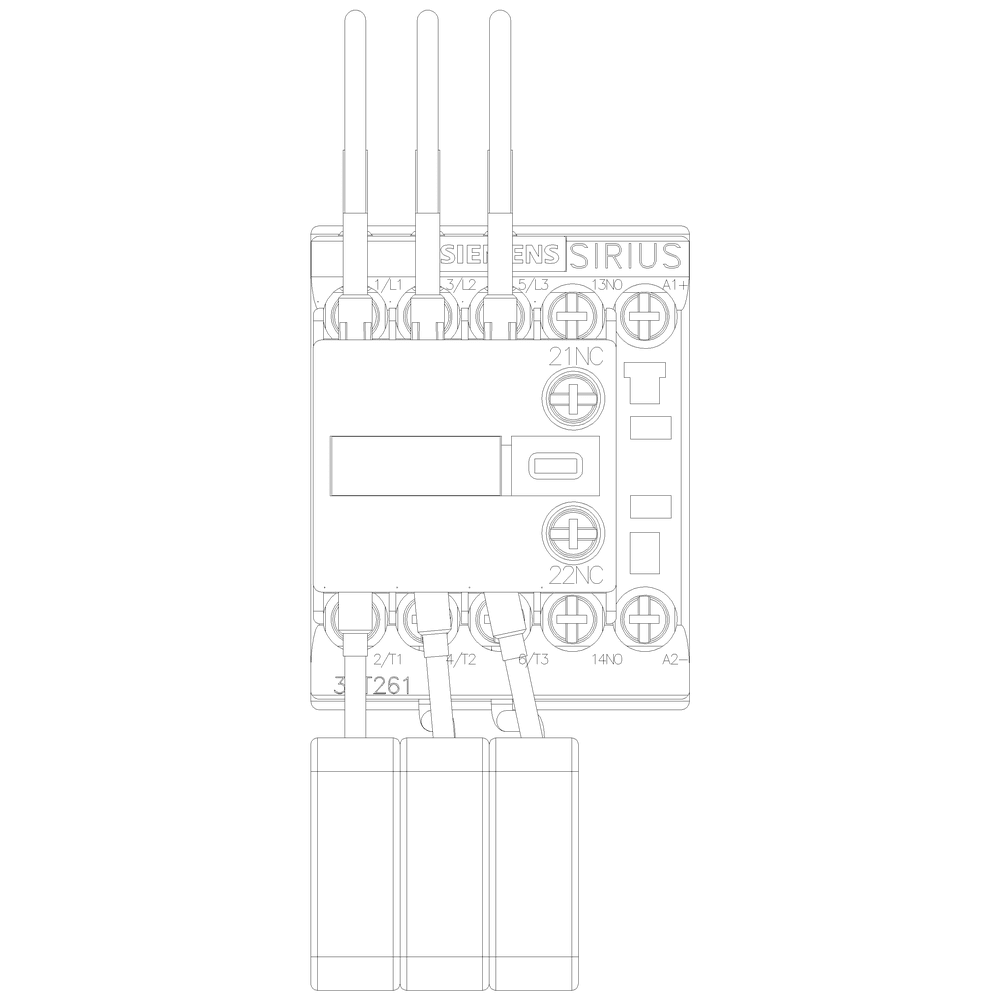

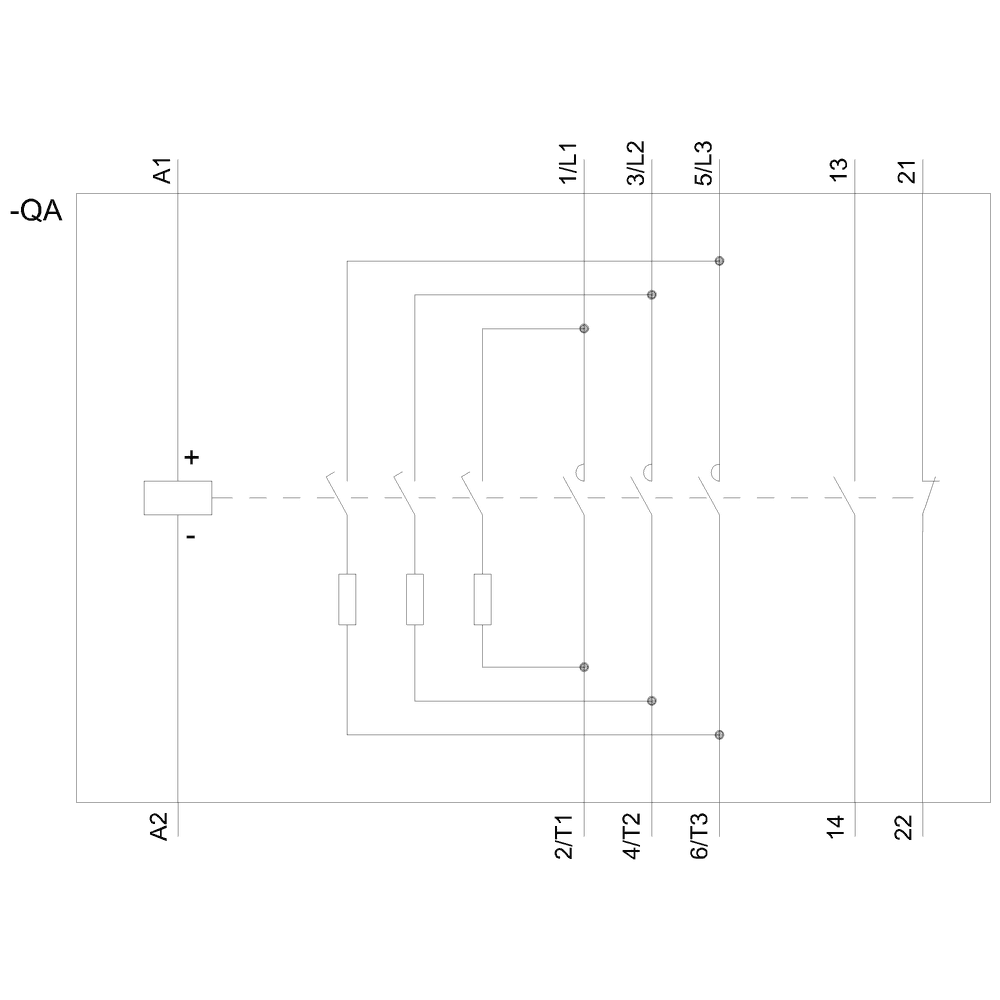

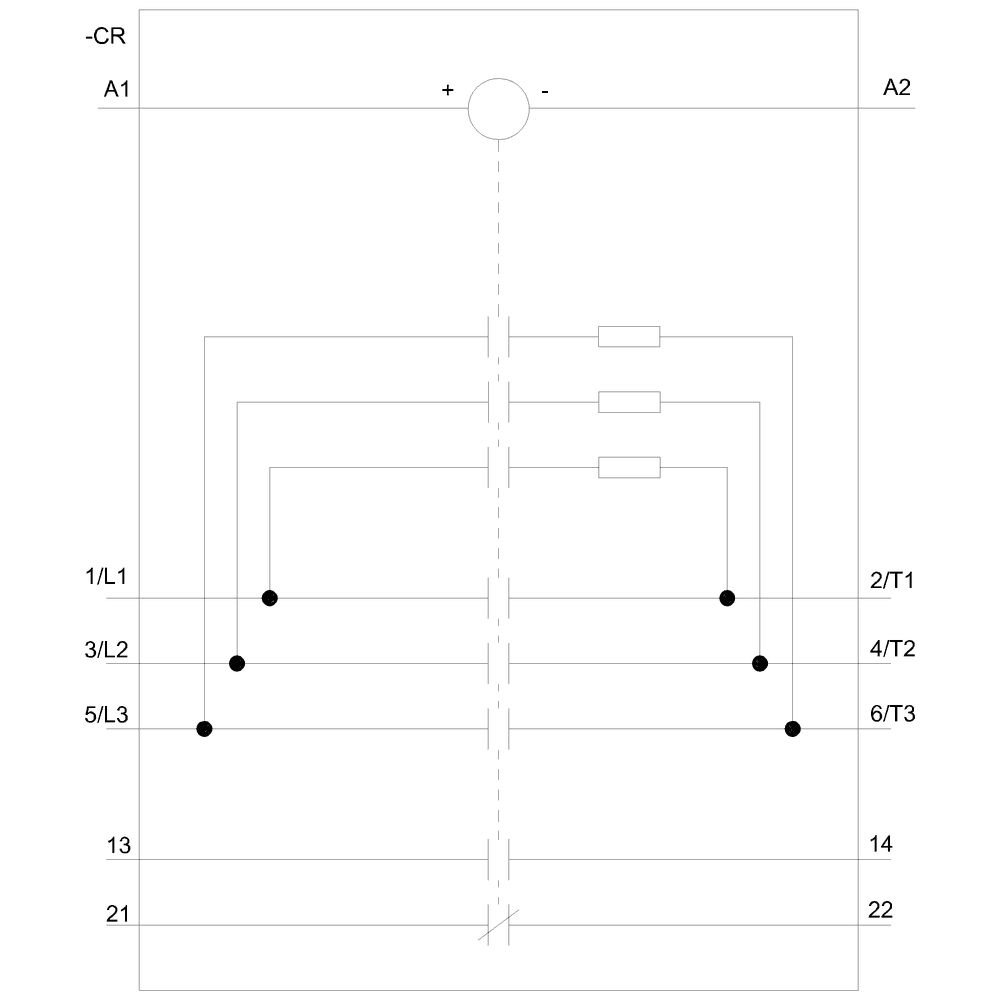

Siemens 3RT2617-1BB43. capacitor contactor, AC-6b 12.5 kVAr, / 400 V, 3-pole, 24 V DC, auxiliary contacts: 1 NO + 1 NC, screw terminal, size: S00.
Specifications
Mechanical
Net Weight0.416 kg

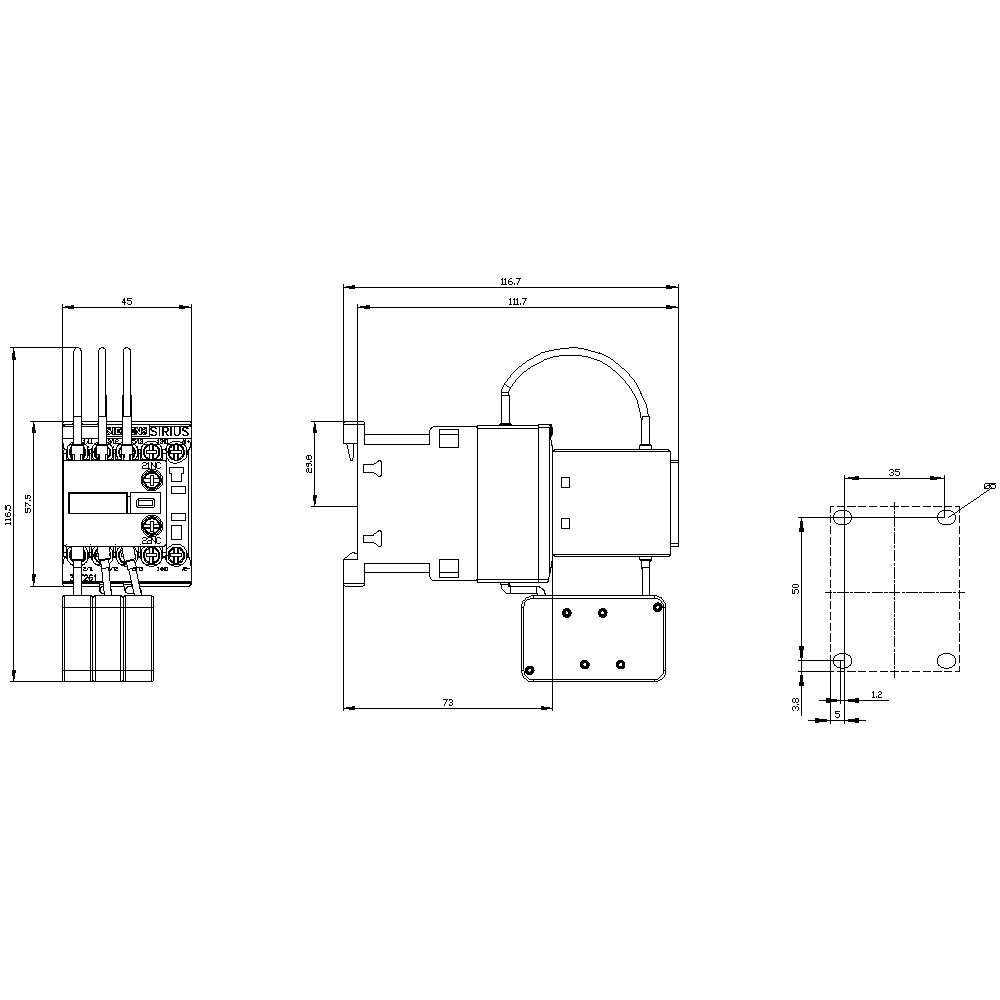

Dimensions
Width45 mm
Height125 mm
Depth120 mm
Other
— solid2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²), 2x 4 mm²
arcing time10 ... 15 ms
type of voltageDC
fastening methodscrew and snap-on mounting onto 35 mm DIN rail according to DIN EN 50022
mounting position+/-180° rotation possible on vertical mounting surface; can be tilted forward and backward by +/- 22.5° on vertical mounting surface
size of contactorS00
— solid or stranded2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²), 2x 4 mm²
product brand nameSIRIUS
product designationcapacitor contactors
product type designation3RT26
relative humidity minimum10 %
Substance Prohibitance (Date)05/01/2014
closing power of magnet coil at DC4 W
holding power of magnet coil at DC4 W
product extension auxiliary switchNo
electrical endurance (operating cycles)300 000
reference code according to IEC 81346-2Q
number of NC contacts for main contacts0
number of NO contacts for main contacts3
control supply voltage at DC rated value24 V
number of poles for main current circuit3
— finely stranded with core end processing2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
contact reliability of auxiliary contacts1e-8
number of NC contacts for auxiliary contacts1
number of NO contacts for auxiliary contacts1
type of voltage of the control supply voltageDC
control version of the switch operating mechanismStandard A1 - A2
type of calculation of power loss depending on polequadratic
contact rating of auxiliary contacts according to ULA600 / Q600
touch protection on the front according to IEC 60529finger-safe, for vertical contact from the front
installation altitude at height above sea level maximum2 000 m
protection class IP on the front according to IEC 60529IP20
operational current of auxiliary contacts at AC-12 maximum10 A
relative humidity at 55 °C according to IEC 60068-2-30 maximum95 %
AWG number as coded connectable conductor cross section for main contacts20 ... 12
operational current at AC-6b at 690 V at ambient temperature 60 °C rated value18 A
design of the miniature circuit breaker for short-circuit protection of the auxiliary circuit up to 230 VC characteristic: 10 A; 0.4 kA
maximum permissible voltage for protective separation between coil and main contacts according to EN 60947-1400 V
