Active
Timing relay
Part Number: 3RP2505-1AB30-0AC1
Brand
Category
Timer relay

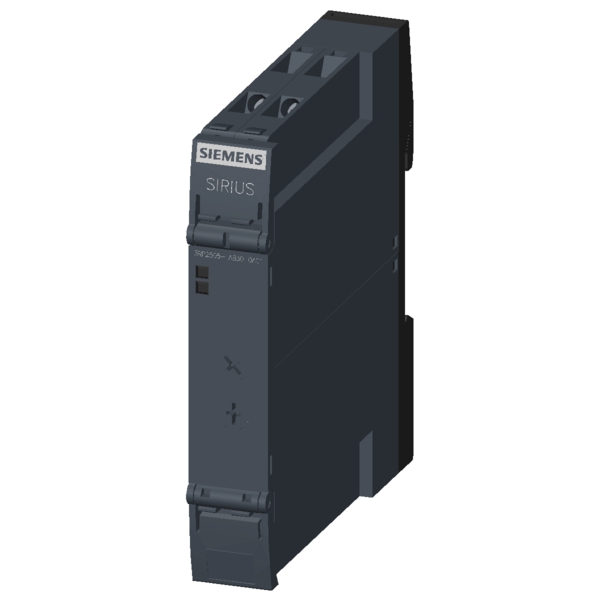

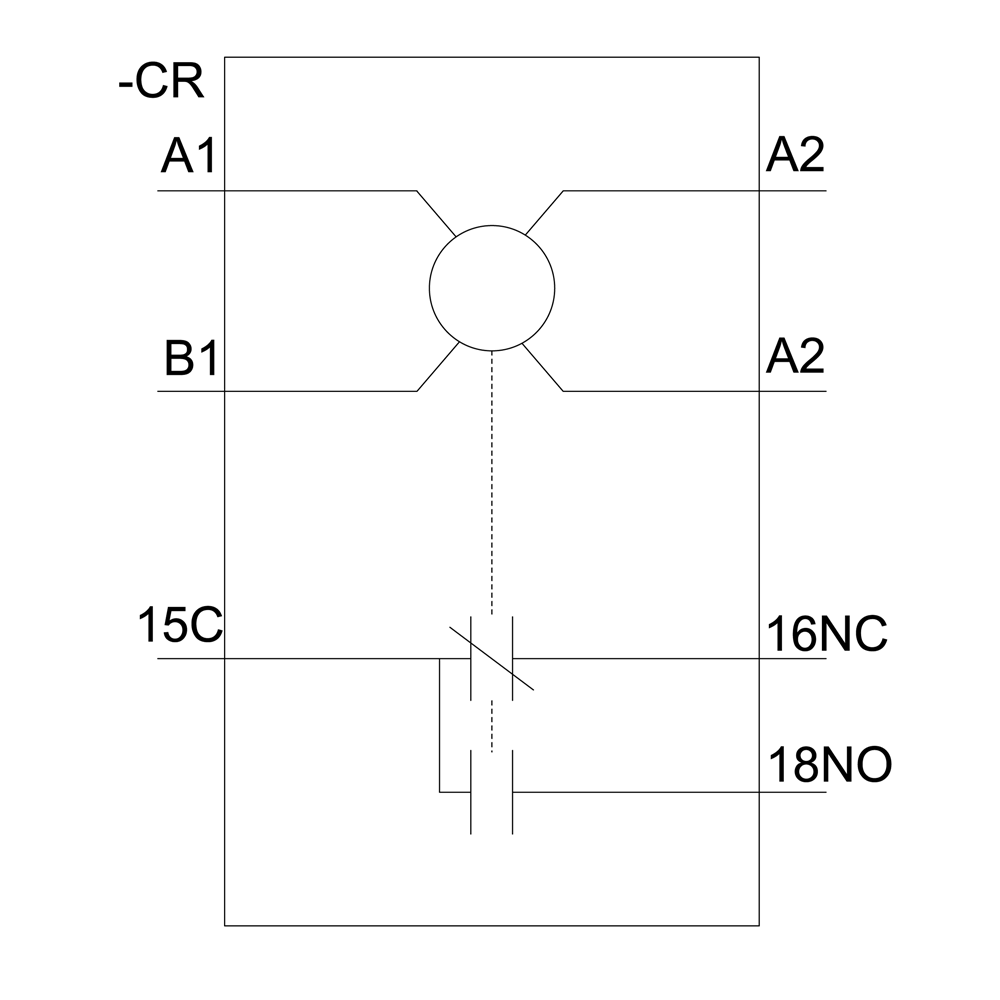

Siemens 3RP2505-1AB30-0AC1. Timing relay, multifunction 1 changeover contact, 2 functions (B, K) 7 time ranges (0.05 s...100 h) 24 V AC/DC at 50/60 Hz AC With LED, screw terminal.
Specifications
Mechanical
Net Weight0.132 kg
Other
adjustable time0.05 s ... 100 h
product brand nameSIRIUS
product designationtiming relay
design of the product2 functions (B, K)
product type designation3RP25
Substance Prohibitance (Date)09/12/2014
EMC immunity according to IEC 61812-1corresponds to degree of severity 3
EMC emitted interference according to IEC 61812-1ambience A (industrial sector)
protection class IP on the front according to IEC 60529IP20
product feature protective coating on printed-circuit boardNo
