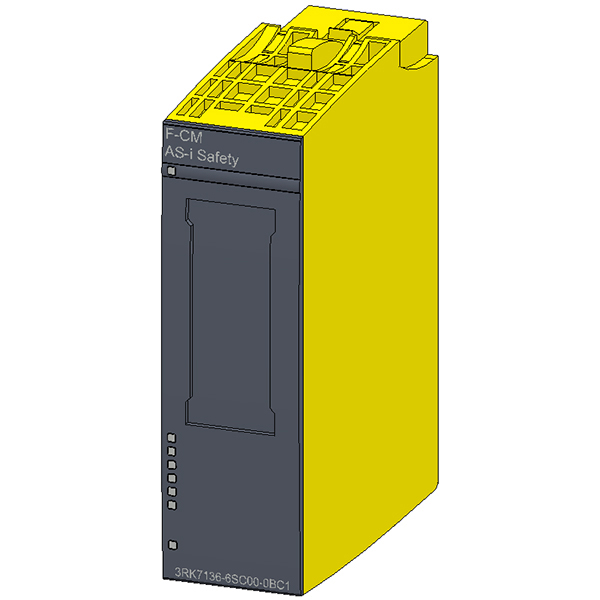

SIMATIC ET 200SP Safety communications module F-CM AS-i Safety ST for AS-Interface
Part Number: 3RK7136-6SC00-0BC1
Brand
Category
PLC communication module
Siemens 3RK7136-6SC00-0BC1. SIMATIC ET 200SP Safety communications module F-CM AS-i Safety ST for AS-Interface.
Specifications
Dimensions
Width20 mm
Height73 mm
Depth58 mm
Other
power loss [W]2.1
module formatET 200SP design
— at 30 V maximum70
fastening methodpluggable on terminal module
product designationASIsafe communication module
protection class IPIP20
type of voltage supplyvia AS-i
product type designationET 200SP
access to digital I/O dataVia process image
type of data transmissionET 200SP backplane bus
number of interfaces other1
insulation voltage rated value500
— at 24 V with AS-i Power24V maximum70
category according to EN ISO 13849-14
number of interfaces as AS-Interface1
EMC immunity according to IEC 60947-1IEC61326-3-1
explosion protection category for gasnone
certificate of suitability TÜV approvalYes
certificate of suitability UL approvalYes
explosion protection category for dustnone
reference code according to IEC 81346-2K

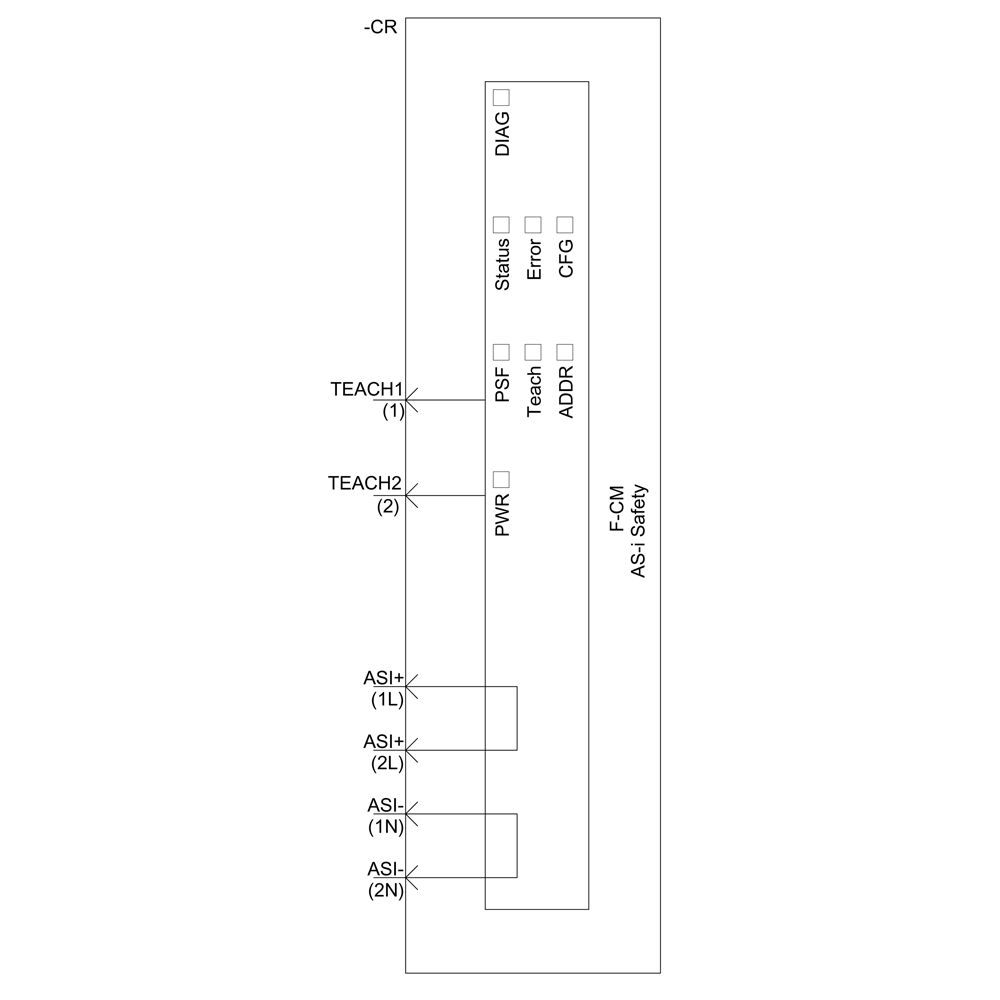

display version as status display by LEDDIAG STATUS ERROR CFG PSF TEACH ADDR PWR
protocol is supported PROFIsafe protocolYes
type of configuration of the AS-InterfaceSTEP7 Safety
version of the AS-Interface specificationV 3.0
product function suitable for AS-i Power24VYes
safety device type according to IEC 61508-2Type B
suitability for use safety-related functionYes
vibration resistance according to IEC 60068-2-65 ... 8.4 Hz / 0.35 mm / 10 cycles; 8.4 ... 150 Hz / 9.8 m/s 2/10 cycles; 10 ... 60 Hz / 0.35 mm / 24 cycles; 60 ... 1000 Hz / 50 m/s 2/24 cycles
performance level (PL) according to EN ISO 13849-1e
SIL Claim Limit (subsystem) according to EN 620613
electrostatic discharge according to IEC 61000-4-26 kV contact discharge / 8 kV air discharge
EMC emitted interference according to IEC 60947-1IEC61000-6-4 Class A
field-based interference according to IEC 61000-4-380 Mhz ... 1 GHz 20 V/m, 1.4 GHz ... 2 GHz 10 V/m, 2.0 GHz ... 2.7 GHz 3 V/m
Safety Integrity Level (SIL) according to IEC 61508SIL 3
relative humidity at 25 °C during operation maximum95
installation altitude at height above sea level maximum2 000
conducted interference due to burst according to IEC 61000-4-42 kV
