Part Number: 3RK3311-1AA10
Brand
Category
Device for monitoring of safety-related circuits

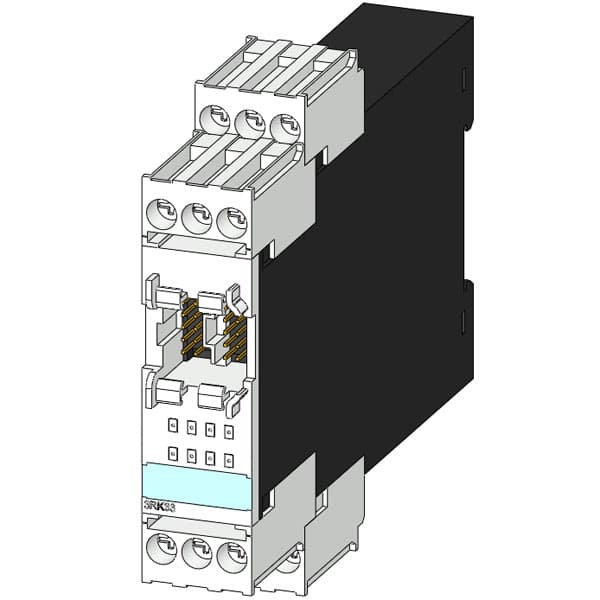

Siemens 3RK3311-1AA10. SIRIUS, Extension module 3RK33 for modular Safety system 3RK3 8 DO, 24 V DC/0.5 A Can be parameterized via MSS ES 22.5 mm overall width screw terminal without connection cable.
Specifications
Mechanical
Net Weight0.161 kg

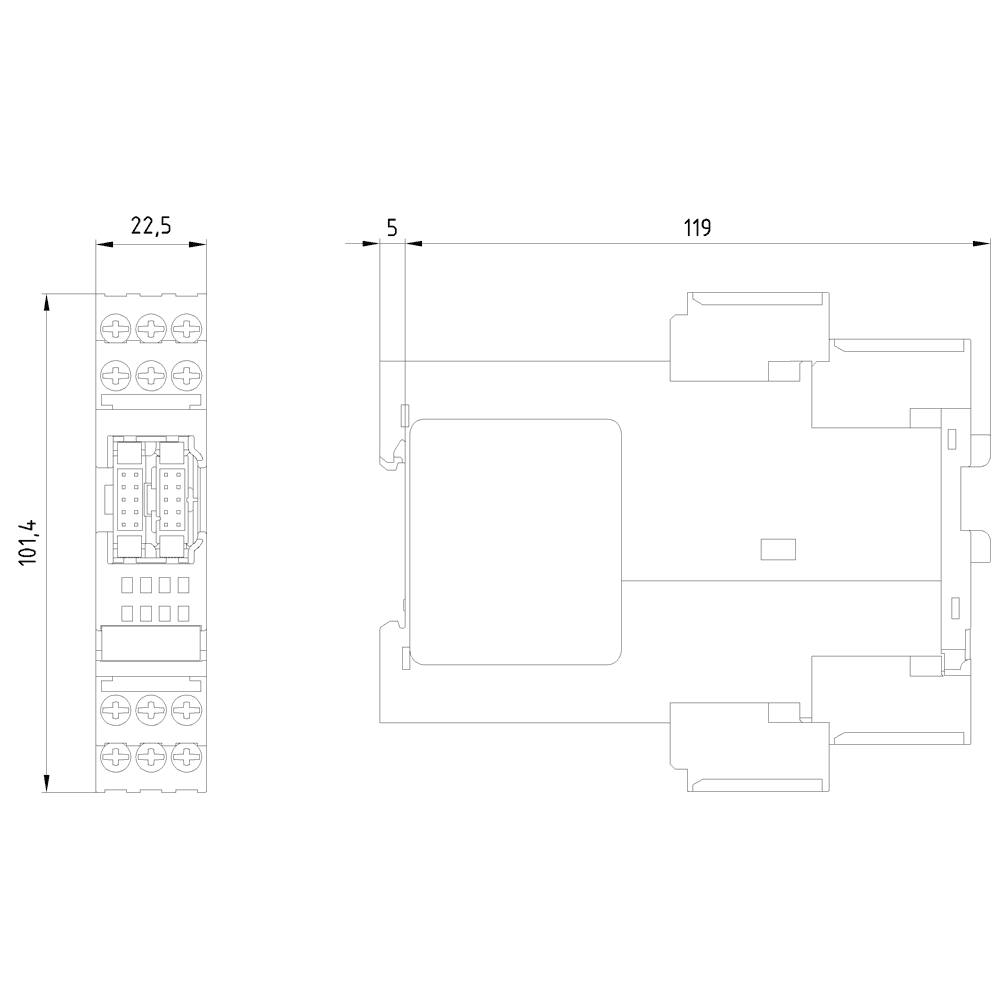

Dimensions
Width22.5 mm
Height102 mm
Depth124 mm
Other
type of voltageDC
fastening methodDIN rail
product categoryModular Safety System
shock resistance15g / 11 ms
mounting positionvertical
product brand nameSIRIUS
degree of pollution3
design of the product8 DO
Substance Prohibitance (Date)05/28/2009
type of electrical connectionscrew terminal
insulation voltage rated value50 V
relative humidity during operation10 ... 95 %
surge voltage resistance rated value500 V
reference code according to IEC 81346-2K
touch protection against electrical shockfinger-safe
control supply voltage 1 at DC rated value24 V
vibration resistance according to IEC 60068-2-65 ... 500 Hz: 0.75 mm
electrostatic discharge according to IEC 61000-4-24 kV contact discharge / 8 kV air discharge
field-based interference according to IEC 61000-4-310 V/m, 3 V/m, 1 V/m
number of outputs for testing contact-based sensors0
installation altitude at height above sea level maximum2 000 m
