Active

Power line 7/8" for 24 V connected and unconnected assembled with 1 x 7/8" angled on one side

Name: Power line 7/8" for 24 V connected and unconnected assembled with 1 x 7/8" angled on one side
Brand: Siemens
SKU: 3RK1902-3GB50
Availability: InStock

Part Number: 3RK1902-3GB50

Brand

Visit Website

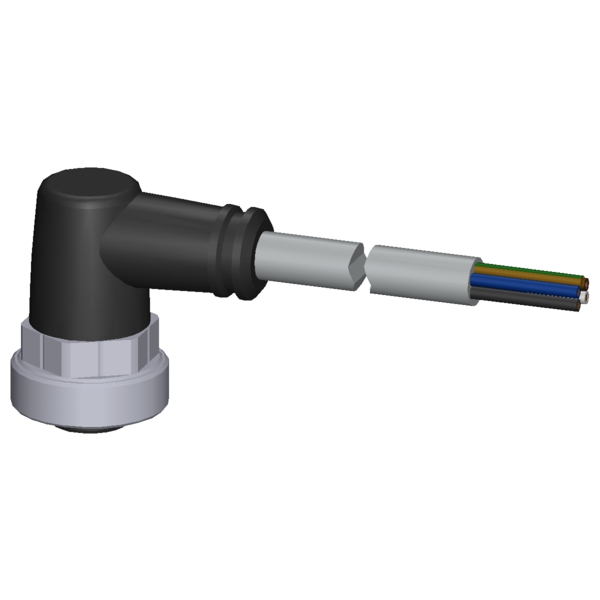

Siemens 3RK1902-3GB50. Power line 7/8" for 24 V connected and unconnected assembled with 1 x 7/8" angled on one side, 1.5 mm2 Socket, 5-pole, Length 5.0 m.

Specifications

Other

wire length5

— at AC maximum400

— at DC maximum400

number of poles5

degree of pollution3

product description7/8" socket, angled

protection class IPIP67

cable end componentsopen on one side

design of the shieldunshielded

type of cable outletangled

type of strain reliefmolded

type of plug interlock7/8 thread

ampacity per pin maximum8

number of bending cycles5 000 000

number of electrical cores5

surge voltage resistance rated value3

mechanical service life (mating cycles)100

type of connectable conductor cross-sections stranded5 x 1.5 mm²

symmetrical tolerance of the outer diameter of the cable0.2
