Active
bus cable for PROFINET pre-assembled at one end 4-core
Part Number: 3RK1902-2HB30
Brand
Category
Data and communication cable

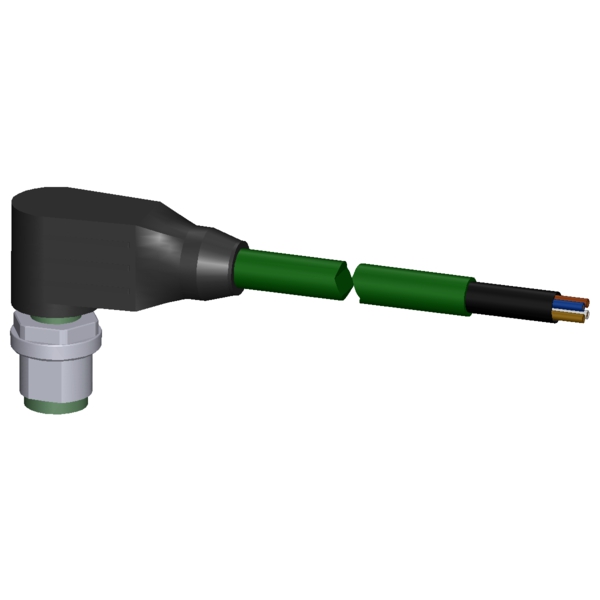

Siemens 3RK1902-2HB30. bus cable for PROFINET pre-assembled at one end 4-core, shielded pre-assembled with 1 x M12 D-encoded length 3.0 m.
Specifications
Other
wire length3
connector typePlug/open
number of poles4
cable designationBUS: 2x2xAWG22/7 9YH(ST)C11Y
degree of pollution3
product descriptionM12 plug, angled
cable end componentspopulated on both sides
design of the shieldShielding braid of tinned copper wire
type of cable outletangled
type of strain reliefmolded
type of plug interlockM12 x 1 thread
ampacity per pin maximum4
number of bending cycles2 000 000
number of electrical cores4
conductor cross section rated value0.34
surge voltage resistance rated value1.5
mechanical service life (mating cycles)100
connector coding of the M12 circular connectorD
symmetrical tolerance of the outer diameter of the cable0.2
