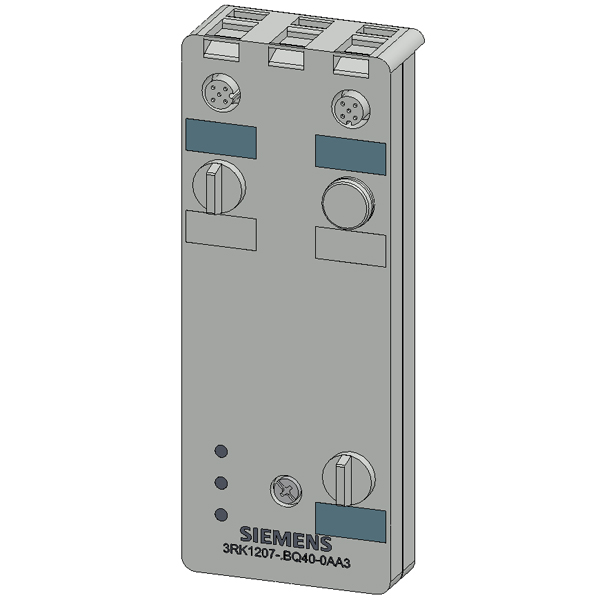

AS-i Compact Module K60 analog 2 AI
Part Number: 3RK1207-3BQ40-0AA3
Brand
Category
Fieldbus, decentr. periphery - analogue I/O module
Siemens 3RK1207-3BQ40-0AA3. AS-i Compact Module K60 analog 2 AI, IP67 2 x input, resistor Pt100, Ni100, 0-600 ohm for 4-wire sensors 2 x M12 socket mounting plate 3RK1901-0CA00 must be ordered separately.
Specifications
Dimensions
Width60 mm
Height152 mm
Depth29 mm
Other
profile7.3
input variableOhm
fastening methodstandard rail mounting/wall mounting using mounting plate for K60 compact module
protection class IPIP67
design of the productanalog I/O modules for operation in the field, IP67 - K60
number of analog inputs2
number of analog outputs0
design of the device typeanalog slave
type of connection technology4-conductor
A/D resolution for analog inputs/outputs16
product function input variable parameterizableYes
type of electrical connection of the inputs and outputsM12 screw-type terminals
consumed current from profile conductors of the AS-Interface at 30 V maximum100
