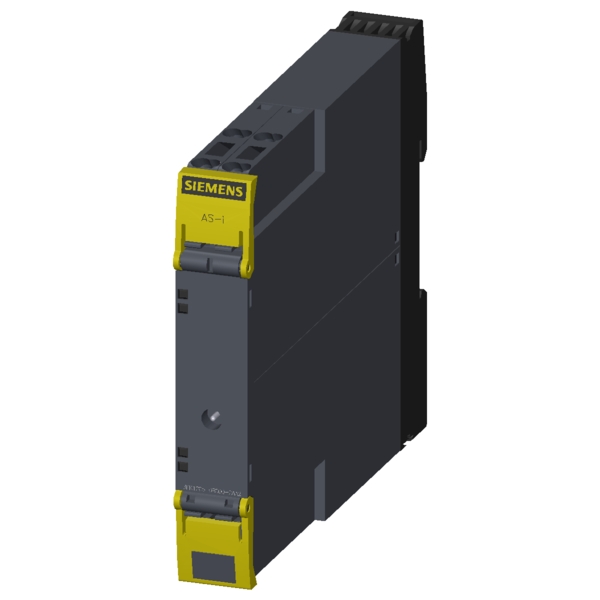

ASIsafe SlimLine Compact module SC17.5F digital safety 2 F-DI
Part Number: 3RK1205-0BG00-2AA2
Brand
Category
Fieldbus, decentr. periphery - digital I/O module
Siemens 3RK1205-0BG00-2AA2. ASIsafe SlimLine Compact module SC17.5F digital safety 2 F-DI, IP20 2 x input for mechanical sensors spring-type terminals Overall width 17.5 mm.
Specifications
Mechanical
Net Weight0.137 kg
Dimensions
Width17.5 mm
Height100 mm
Depth120 mm
Other
ID1 codeF; Factory setting, changeable
fastening methodscrew and snap-on mounting
shock resistance15g / 11 ms (modules) or 10g / 11 ms (modules with device connector)
product designationSlimline Compact I/O module for use in the control cabinet
design of the productAS-i SC17.5F, 2F-DI
number of analog inputs0
number of analog outputs0
number of digital inputs0
product type designation3RK1
design of the device typestandard slave
number of digital outputs0
Safe failure fraction (SFF)99 %
AS-Interface device profileS-0.B.F
Substance Prohibitance (Date)05/01/2012
type of input characteristicmechanical contacts
category according to EN ISO 13849-1up to Category 4
number of digital inputs safety-related2
product function suitable for AS-i Power24VYes
type of address setting of the AS-i devicesvia front addressing socket
performance level (PL) according to EN ISO 13849-1e
PFHD with high demand rate according to IEC 620610 1/h
Safety Integrity Level (SIL) according to IEC 615083
PFDavg with low demand rate according to IEC 615085E-6
type of electrical connection of the inputs and outputsspring-loaded terminal (push-in)
operating voltage according to AS-Interface specification18 ... 31.6 V
T1 value for proof test interval or service life according to IEC 6150820 a
